M310-00011

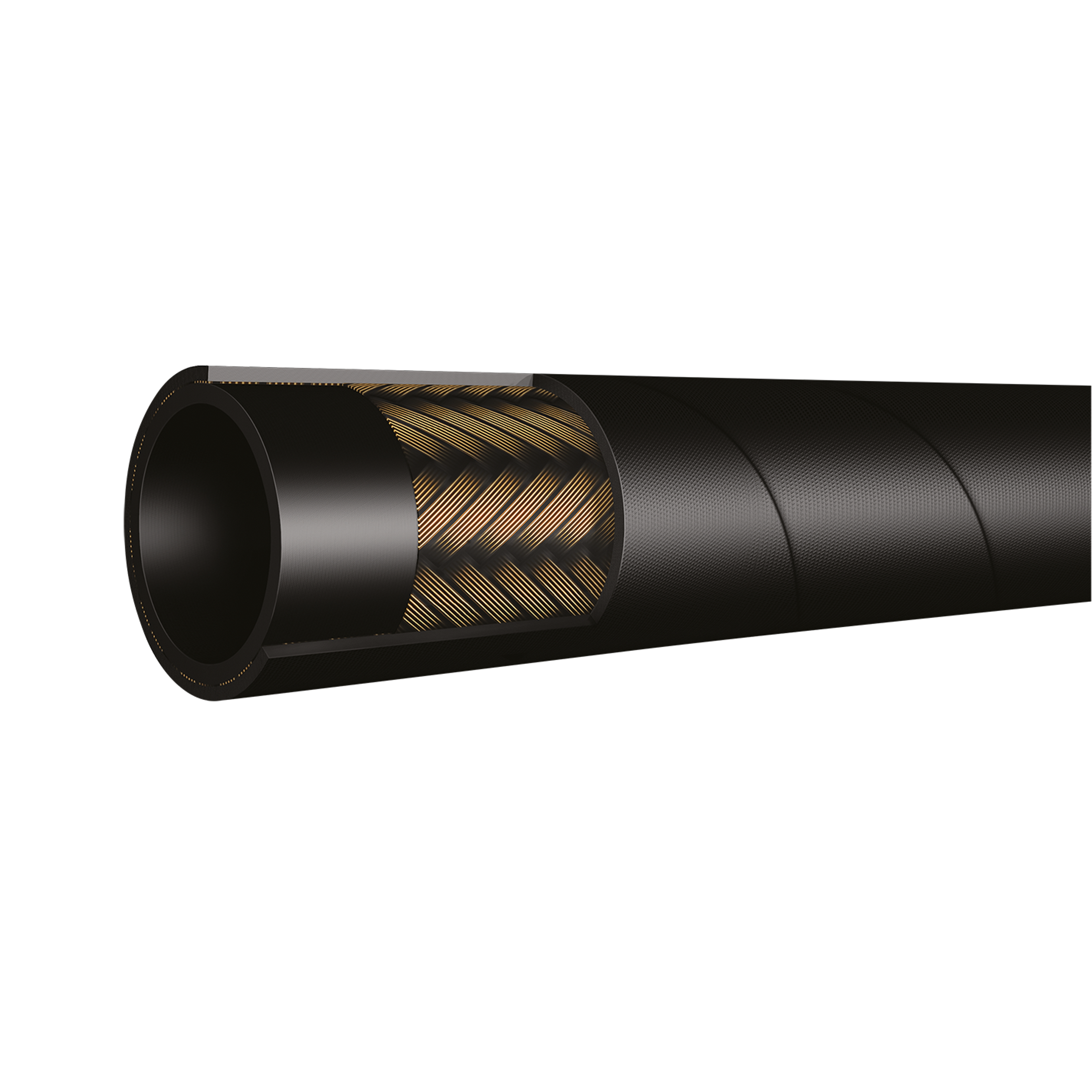

FT Pro 3/16" 100R1AT Hydraulic Hose

Product Code: 100R1AT-03-100



...

Immediately Available - 5 in stock

tech sheet 5001

Details

Length Metres
100
Standard
EN853-1 DIN20022
Series
Steel Braided
Outside Diameter mm
12.5
Maximum Working Pressure bar
250
Colour
Black
Hose Diameter (DN)
12.5
Brand
FT Pro
Material
Synthetic Rubber
Inside Diameter Inch
3/16"
Bend Radius mm
90
Working Temperature
-40°C to +100°C

Specification

12.5mm Outside Diameter x 3/16" Inside Diameter, Hydraulic Hose, 1 Wire, 100R1AT, 100 Metre Coil, 90mm Bend Radius, Black, Synthetic Rubber, Wire Braid, EN853-1 DIN20022, Bursting Pressure 1000 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 250 bar, FT Pro Huge Savings! Available for a limited time - while stock lasts

Application: Medium pressure hydraulic applications. Specification: DIN 20022, EN853 - 1 exceeds 100R1AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single steel wire braid. Outer cover: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose cover must be pin-pricked. Available per metre. Smooth cover available on request

Additional Variants

Product Name
Product Code
Inside Diameter Inch
Outside Diameter mm
Maximum Working Pressure bar
Bend Radius mm
Hose Diameter (DN)
Buy Price
M310-00011
5/8"
24.5
160
200
24.5
£788.49

Available to Order

M310-00011
5/16"
15.7
215
115
15.7
£474.63

Immediately Available - 3 in stock

M310-00011
1/2"
21.4
160
180
21.4
£606.99

Immediately Available - 16 in stock

M310-00011
3/4"
28.6
105
240
28.6
£912.76

Immediately Available - 1 in stock

M310-00011
3/8"
18.1
180
130
18.1
£529.39

Available to Order

M310-00011
1/4"
14.1
225
100
14.1
£387.93

Immediately Available - 72 in stock

M310-00011
1"
36.6
88
300
36.6
£1,304.15

Immediately Available - 14 in stock
