M310-00136

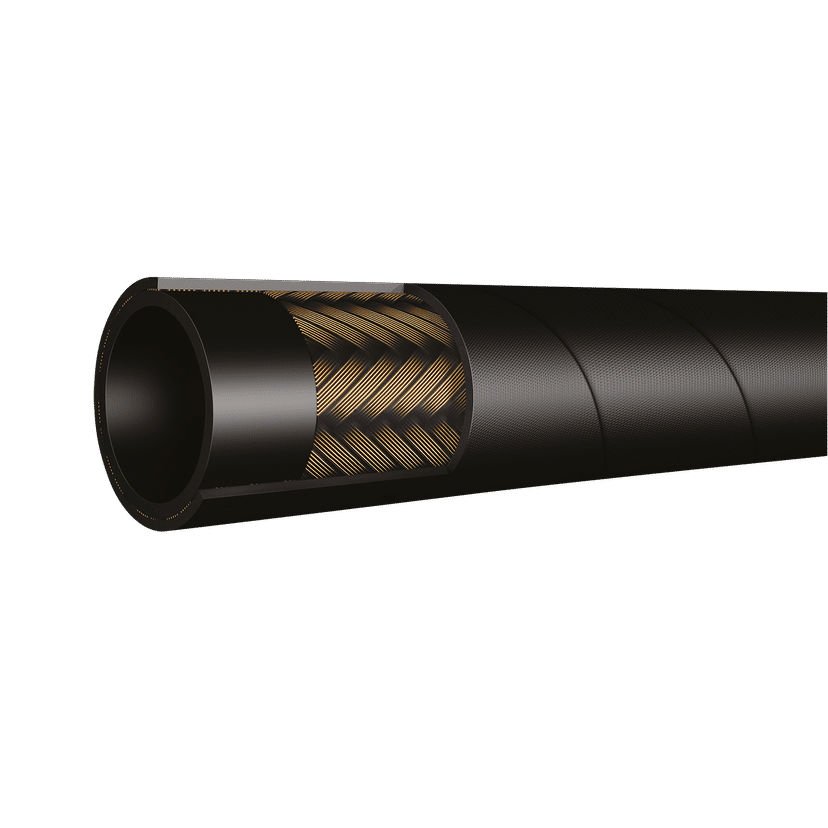

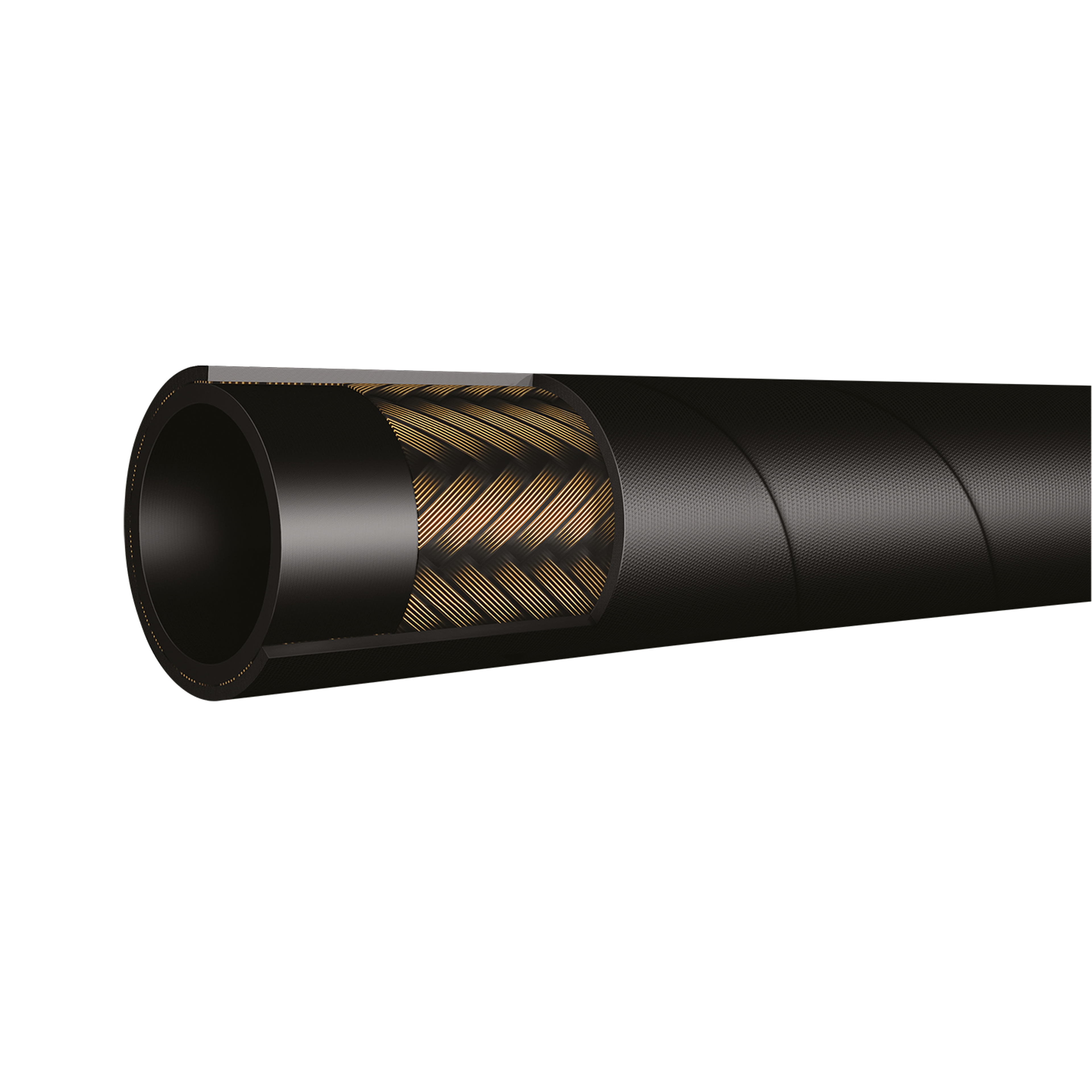

FT Pro 2" 100R1AT Hydraulic Hose

Product Code: 100R1AT-32-40



...

Immediately Available - 11 in stock

tech sheet 5001

Details

Length Metres
40
Standard
EN853-1 DIN20022
Inside Diameter Inch
2"
Series
Steel Braided
Bend Radius mm
630
Hose Diameter (DN)
65.9
Outside Diameter mm
65.9
Colour
Black
Brand
FT Pro
Maximum Working Pressure bar
40
Material
Synthetic Rubber
Working Temperature
-40°C to +100°C

Specification

65.9mm Outside Diameter x 2" Inside Diameter, Hydraulic Hose, 1 Wire, 100R1AT, 40 Metre Coil, 630mm Bend Radius, Black, Synthetic Rubber, Wire Braid, EN853-1 DIN20022, Bursting Pressure 160 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 40 bar, FT Pro

Application: Medium pressure hydraulic applications. Specification: DIN 20022, EN853 - 1 exceeds 100R1AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single steel wire braid. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request

Additional Variants

Product Name
Product Code
Inside Diameter Inch
Bend Radius mm
Hose Diameter (DN)
Outside Diameter mm
Maximum Working Pressure bar
Buy Price
M310-00136
1.1/4"
420
44.8
44.8
63
£740.23

Available to Order

M310-00136
1.1/2"
500
52
52
50
£872.59

Immediately Available - 24 in stock
