M310-00326

FT Pro 2" 100R2AT Hydraulic Hose

Product Code: 100R2AT-32-40



...

Immediately Available - 13 in stock

tech sheet 5002

Details

Maximum Working Pressure bar
80
Length Metres
40
Hose Diameter (DN)
68.6
Inside Diameter Inch
2"
Series
Steel Braided
Bend Radius mm
630
Colour
Black
Brand
FT Pro
Material
Synthetic Rubber
Standard
EN853-2 DIN20022
Outside Diameter mm
68.6
Working Temperature
-40°C to +100°C

Specification

68.6mm Outside Diameter x 2" Inside Diameter, Hydraulic Hose, 2 Wire, 100R2AT, 40 Metre Coil, 630mm Bend Radius, Black, Synthetic Rubber, Wire Braid, EN853-2 DIN20022, Bursting Pressure 320 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 80 bar, FT Pro

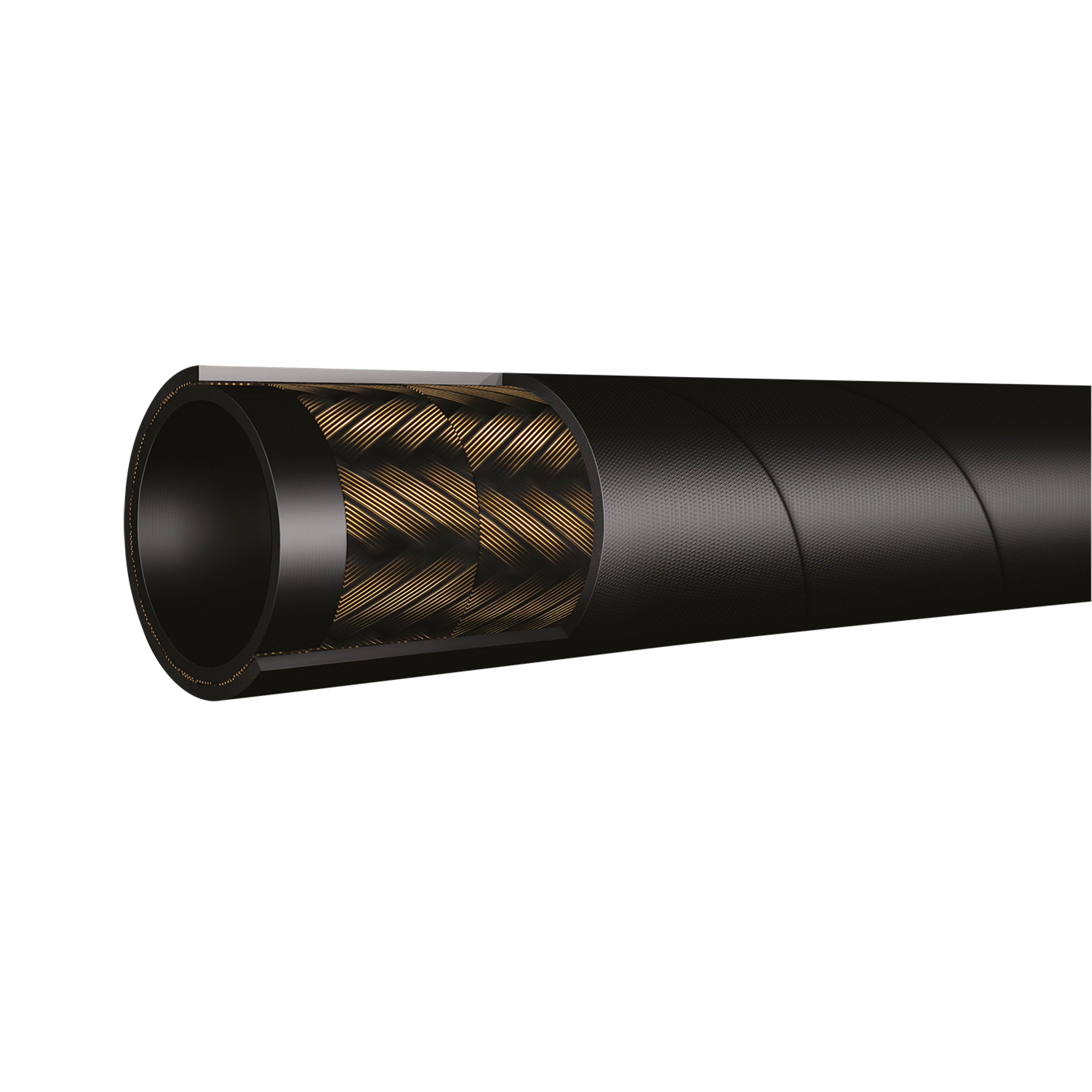

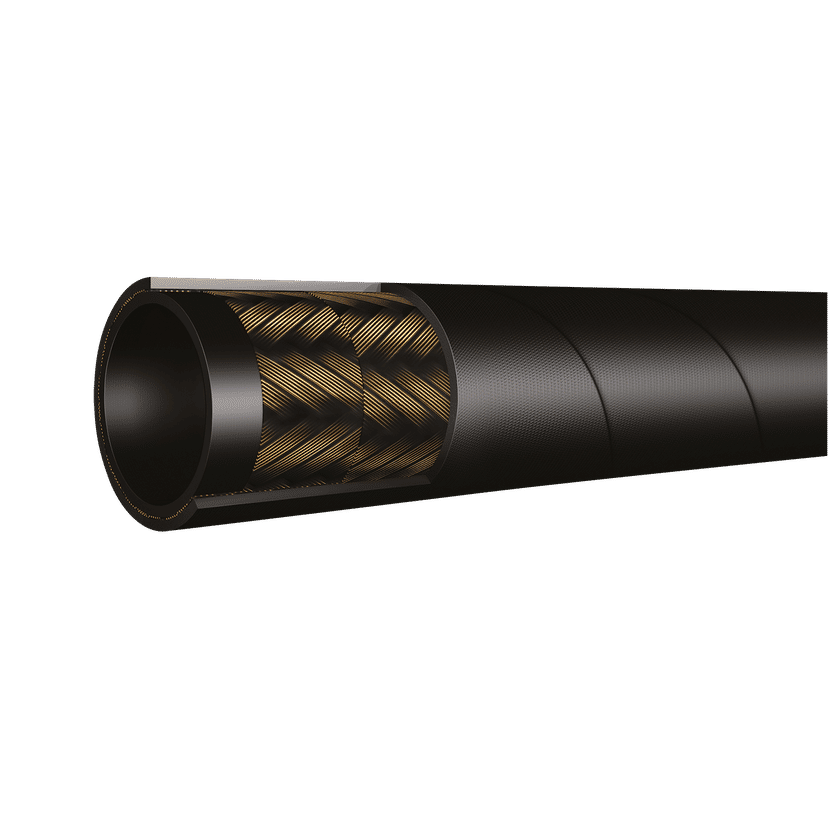

Application: Medium pressure hydraulic applications. Specification: DIN 20022, EN853 - 2 exceeds SAE100R2AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 2 single steel wire braids. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request

Additional Variants

Product Name
Product Code
Hose Diameter (DN)
Bend Radius mm
Outside Diameter mm
Inside Diameter Inch
Maximum Working Pressure bar
Buy Price
M310-00326
56
500
56
1.1/2"
90
£1,008.18

Immediately Available - 3 in stock

M310-00326
49.6
420
49.6
1.1/4"
125
£854.33

Immediately Available - 21 in stock
