FT Pro 19.7MM OD X 3/8" ID Hydraulic Hose MSHA 100R2
Product Code: MSHAR2AT-06-100
...
Immediately Available - 9 in stock
tech sheet 5002
Details
Length Metres
100
Inside Diameter Inch
3/8"
Series
Steel Braided
Outside Diameter mm
19.7
Colour
Black
Brand
FT Pro
Material
Synthetic Rubber
Hose Diameter (DN)
19.7
Bend Radius mm
125
Standard
EN853 DIN20022
Compact
YES
Working Temperature
-40°C to +100°C
Specification
19.7mm Outside Diameter x 3/8" Inside Diameter, Hydraulic Hose, 2 Wire Compact, MSHA 100R2, 100 Metre Coil, 125mm Bend Radius, Black, Synthetic Rubber, Wire Spiral, EN853 DIN20022, Bursting Pressure 1320 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 330 bar, FT Pro Huge Savings! Available for a limited time - while stock lasts

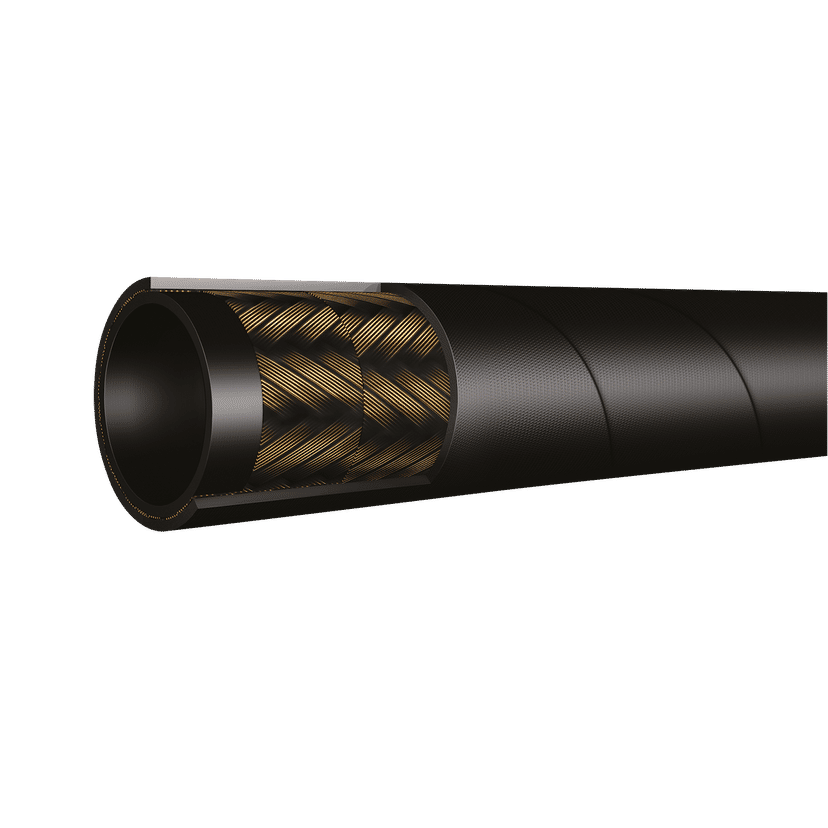

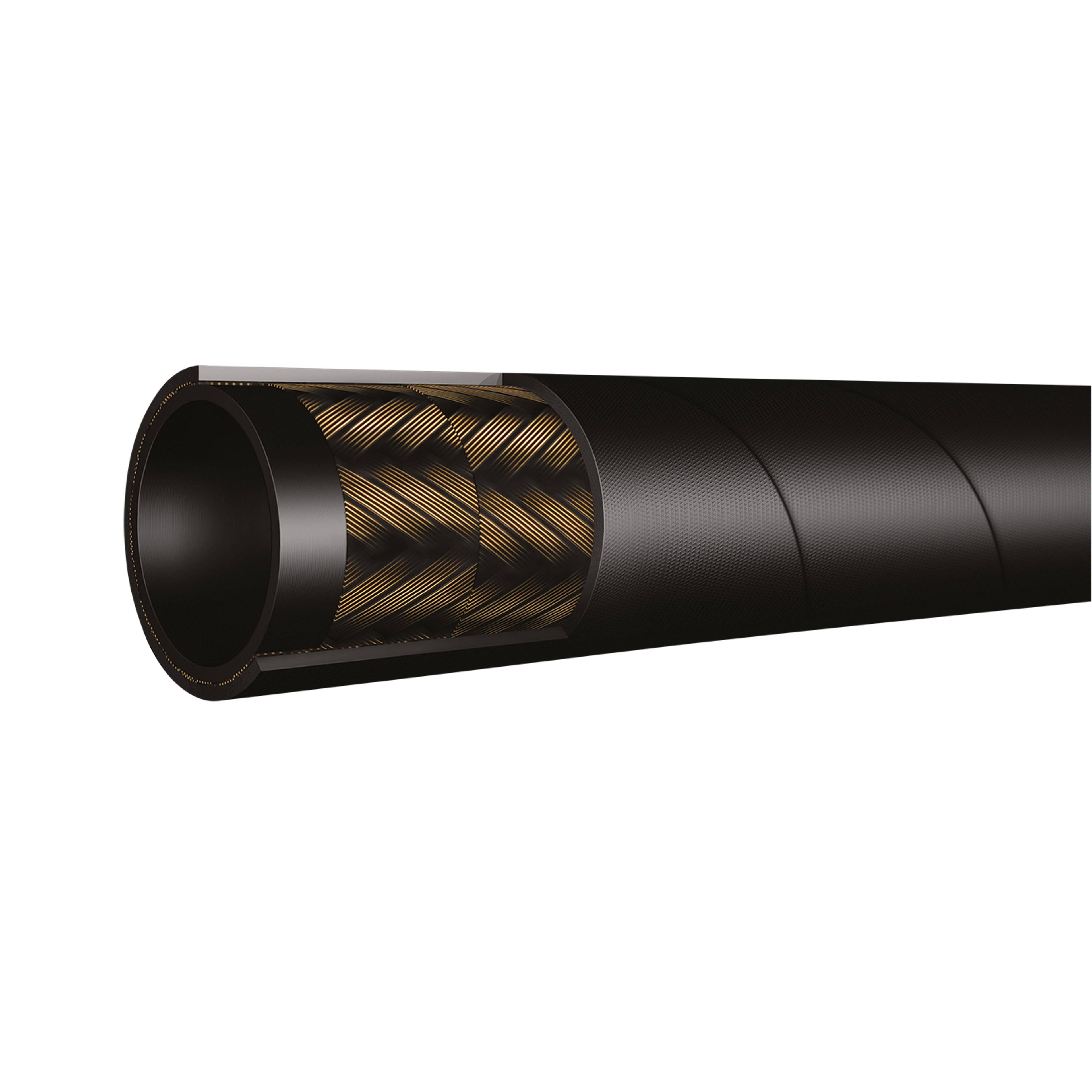

Application: Medium pressure hydraulic applications were MSHA approval and cetification is required. Specification: MSHA Approved, DIN 20022, EN853 - 2SN exceeds SAE100 R2AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 2 single steel wire braids. Outer coverr: MSHA approved oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request
Additional Variants
Product Name
Product Code
Bend Radius mm
Outside Diameter mm
Hose Diameter (DN)
Inside Diameter Inch
Buy Price
180
23.1
23.1
1/2"
£839.62
Immediately Available - 8 in stock
100
15.7
15.7
1/4"
£514.13
Immediately Available - 12 in stock
