Immediately Available - 6 in stock
tech sheet 5002
Details
Length Metres
50
Series
Steel Braided
Hose Diameter (DN)
30.2
Inside Diameter Inch
3/4"
Colour
Black
Brand
FT Pro
Material
Synthetic Rubber
Standard
EN853 DIN20022
Bend Radius mm
240
Outside Diameter mm
30.2
Compact
YES
Working Temperature
-40°C to +100°C
Specification

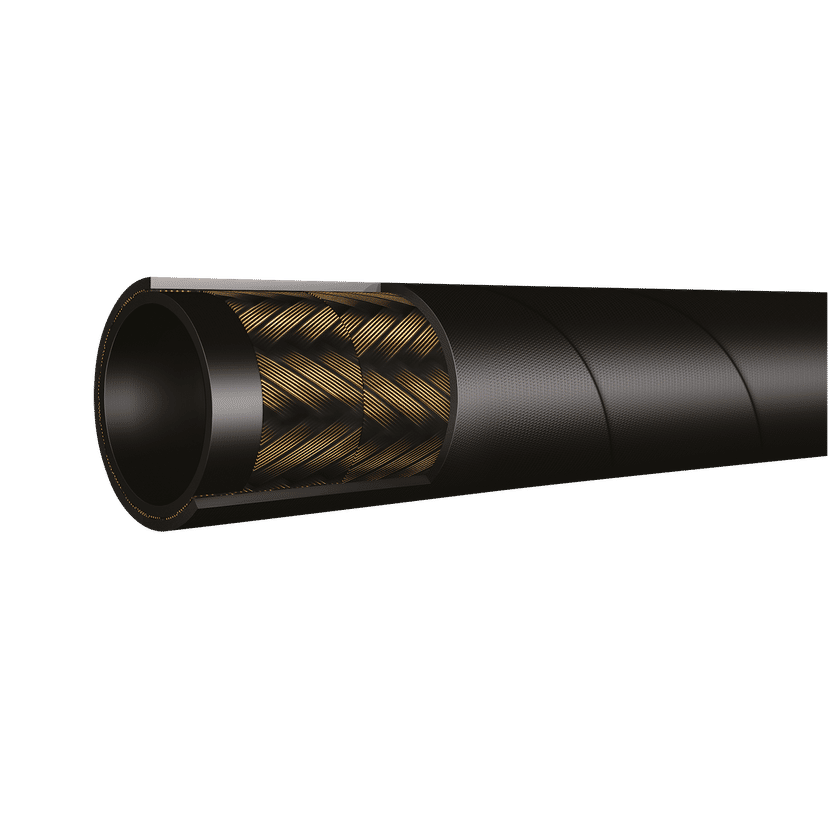

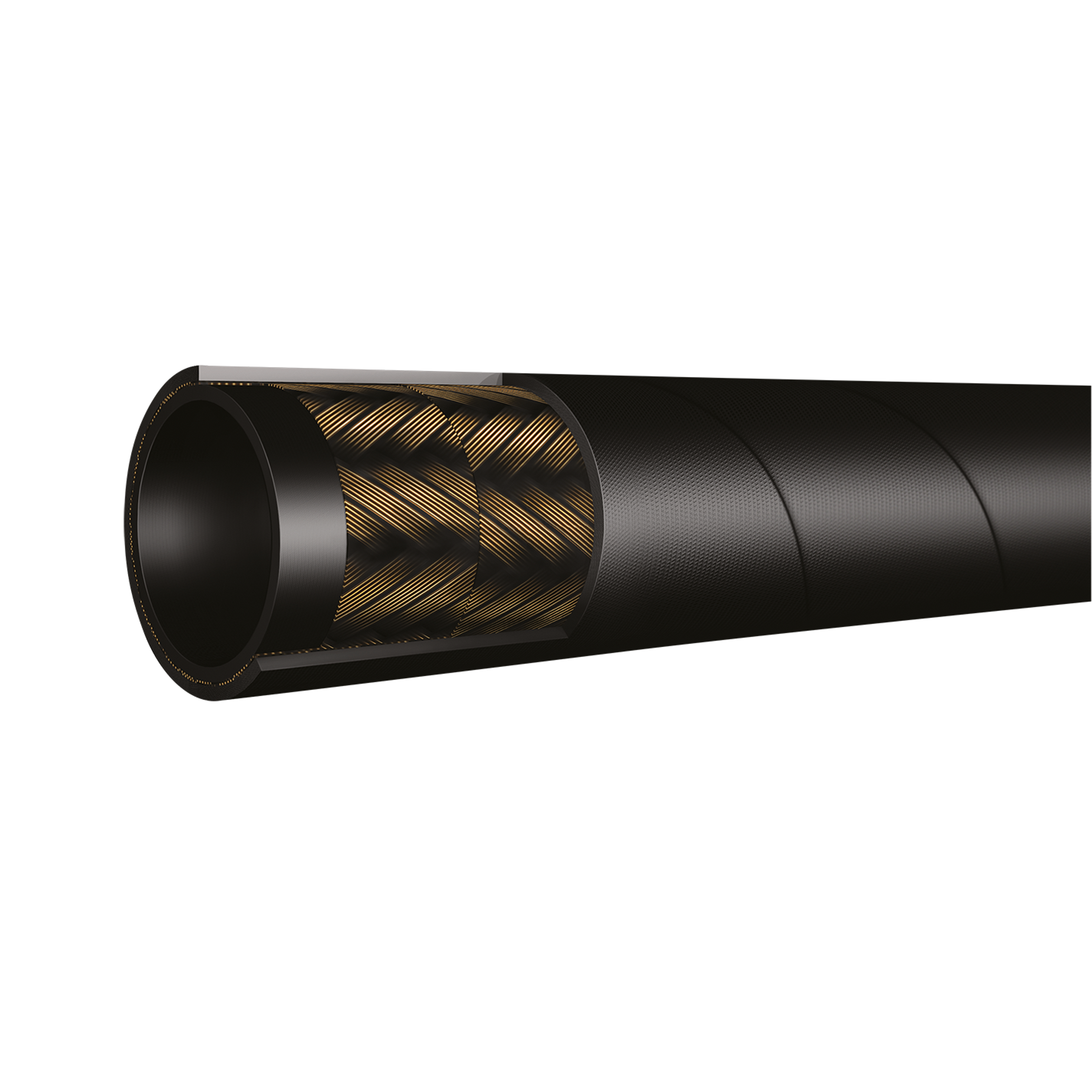

30.2mm Outside Diameter x 3/4" Inside Diameter, Hydraulic Hose, 2 Wire Compact, MSHA 100R2, 50 Metre Coil, 240mm Bend Radius, Black, Synthetic Rubber, Wire Spiral, EN853 DIN20022, Bursting Pressure 850 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 215 bar, FT Pro
Application: Medium pressure hydraulic applications were MSHA approval and cetification is required. Specification: MSHA Approved, DIN 20022, EN853 - 2SN exceeds SAE100 R2AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 2 single steel wire braids. Outer coverr: MSHA approved oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request
Additional Variants
Product Name
Product Code
Bend Radius mm
Outside Diameter mm
Hose Diameter (DN)
Inside Diameter Inch
Buy Price
300
38.9
38.9
1"
£860.47
Immediately Available - 10 in stock
