FT Pro 3/4" 100R6 Green Hose 25M
Product Code: 100R6-12-G-25...
Immediately Available - 10 in stock
tech sheet 5010
Details
Standard
SAE 100R6
Maximum Working Pressure bar
21
Working Temperature
-40°C to +100°C
Series
Cotton Braided
Inside Diameter Inch
3/4"
Reinforcing Material
Fibre Braid
Brand
FT Pro
Length Metres
25
Material
Synthetic Rubber
Outside Diameter mm
27.8
Colour
Green
Inner Material
Synthetic Rubber
Bend Radius mm
150
Specification
27.8mm Outside Diameter x 3/4" Inside Diameter, Hydraulic Hose, 1 Yarn, 100R6, 25 Metre Coil, Green, 150mm Bend Radius, Green, Synthetic Rubber, Fibre Braid, SAE 100R6, Bursting Pressure 84 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 21 bar, FT Pro

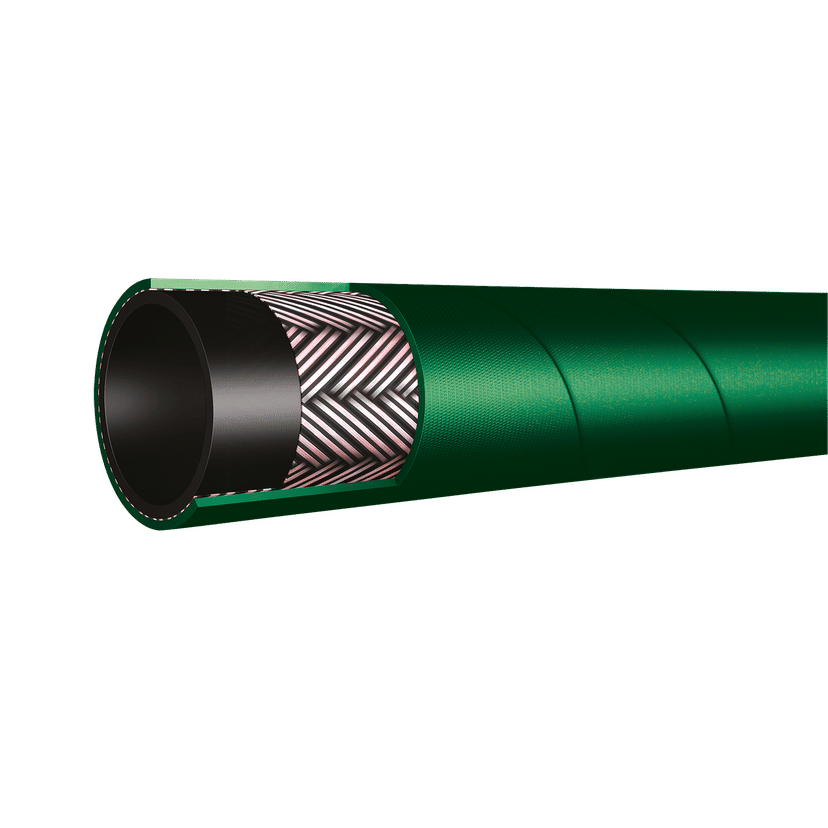

Application: Low pressure hydraulic applications, for use with push style fittins. Specification: SAE100 R6, exceeds EN584. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single textile yarn braid. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. Available per 1 mtr
Additional Variants
Product Name
Product Code
Maximum Working Pressure bar
Number of Gangs
Inside Diameter Inch
Outside Diameter mm
Bend Radius mm
List Price
20
Yes
1"
32.5
205
Immediately Available - 22 in stock
