M310-01647

FT Pro 5/16" ID SAE 100R8 Polyurethane 1 Wire 50 M Coil

Product Code: 100R8-05-50



...

Available to Order

tech sheet 10174

Details

Length Metres
50
Material
Polyurethane
Working Temperature
-40°C to +93°C
Colour
Black
Brand
FT Pro
Standard
SAE 100R8
Series
Thermoplastic
Hose Diameter (DN)
13.5
Inside Diameter Inch
5/16"
Outside Diameter mm
13.5
Bend Radius mm
90
Maximum Working Pressure bar
320

Specification

13.5mm Outside Diameter x 5/16" Inside Diameter, Hydraulic Hose, 1 Wire Thermoplastic, 100R8, 50 Metre Coil, 90mm Bend Radius, Black, Polyurethane, Wire Braid, SAE 100R8, Bursting Pressure 1280 bar, Working Temperature -40°C to +93°C, Maximum Working Pressure 320 bar, FT Pro

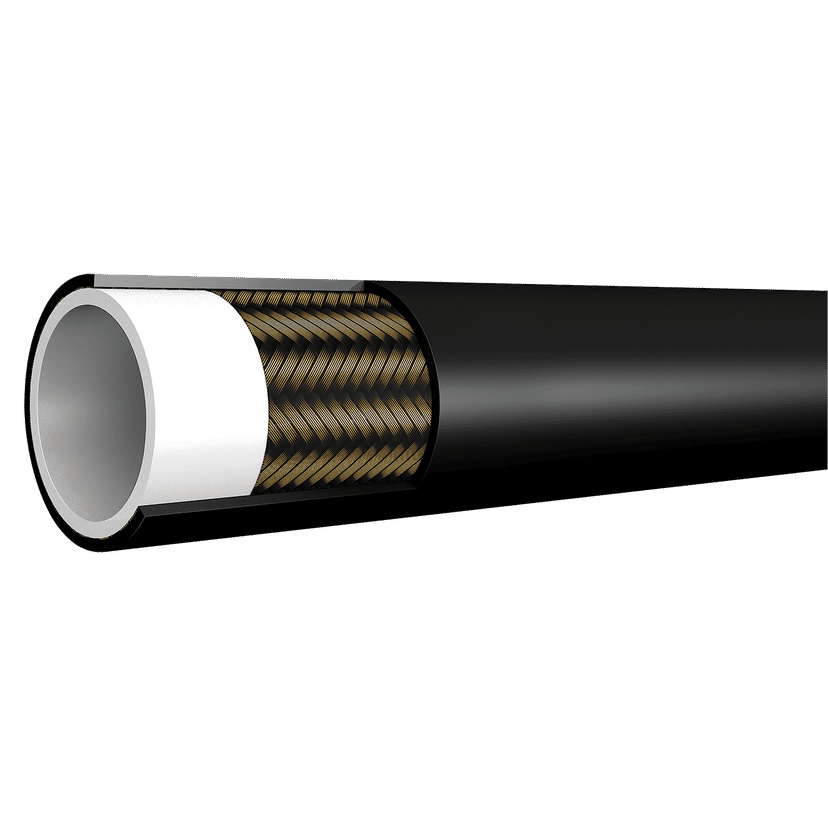

Application: Thermoplastic hose with perforated coverr for use on high pressure hydraulic applications. Specification: SAE100 R8. Construction: Inner tube: thermoplastic elastomer. Reinforcement: 1 layer of steel wire braid. Outer coverr: high abrasion resistant polyurethane. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, lubricating oils, solvents, gas transfer and greasing. Available per 1 mtr

Additional Variants

Product Name
Product Code
Outside Diameter mm
Maximum Working Pressure bar
Inside Diameter Inch
Hose Diameter (DN)
Bend Radius mm
Buy Price
M310-01647
16
280
3/8"
16
100
£502.74

Immediately Available - 1 in stock

M310-01647
22
240
1/2"
22
110
£544.24

Available to Order

M310-01647
12
400
1/4"
12
80
£263.49

Available to Order
