M310-14392

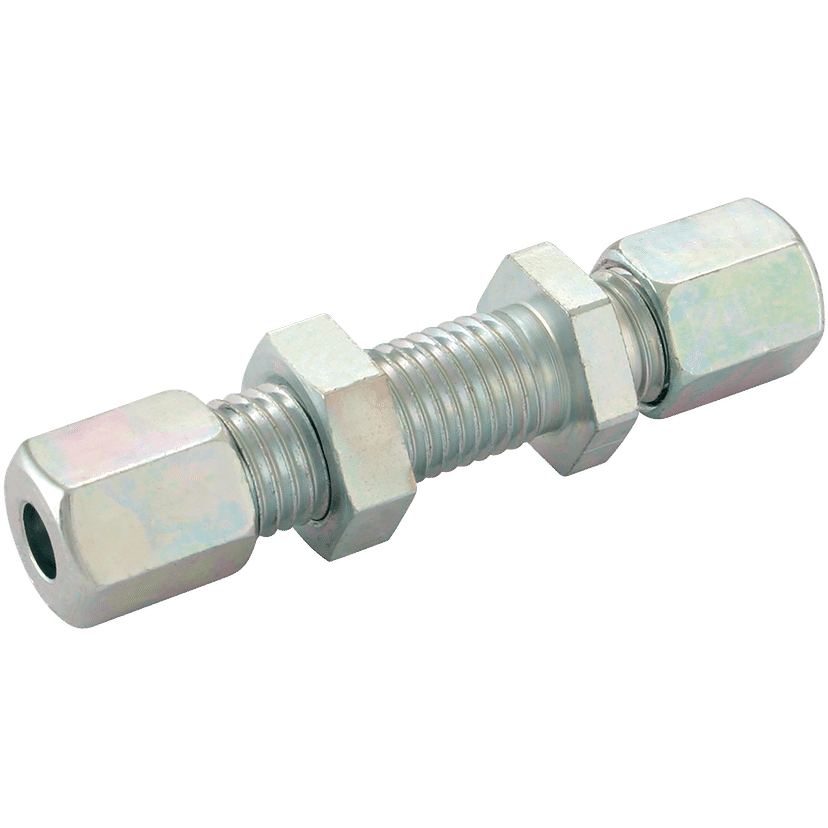

Danfoss Waltech 12MM OD X M18 X 1.5 Equal Bulkhead Steel (L)

Product Code: GSV12L



...

Immediately Available - 468 in stock

tech sheet 1675

Details

Material
Chromium Plated Steel
Outside Diameter mm
12
Series
Light Duty
Maximum Working Pressure bar
400
Thread Type
Metric
Thread Gender
Female
Brand
Danfoss Waltech
Thread Size
M18 x 1.5

Specification

M18 x 1.5 Metric Female x 12mm Outside Diameter, Hydraulic DIN 2353 Compression Fitting, Light Duty, Bulkhead Straight, Chromium Plated Steel, Maximum Working Pressure 400 bar, Danfoss Waltech

Cutting Ring Couplings DIN 2353/ISO 8434-1. Danfoss Waltech Hydraulic BITE TYPE Fittings. Danfoss Waltech offer a complete product range at the highest quality: Based on this principle Danfoss Waltech offers one of the most comprehensive product ranges for tube coupling systems. The Danfoss Waltech programme includes cutting ring, soft seal, flared couplings and flange couplings, plus a wide range of accessories. The Danfoss Waltech range of hydraulic compression fittings cover sizes from 6mm OD to 42mm OD in light-duty and from 6mm OD to 38mm OD in heavy-duty. Manufactured to DIN 2353 standard, mild steel with C6F free surface coating, each compression fitting is supplied complete with cutting ring and nut. Pressure Range Guide: Light Duty 6mm OD-18mm OD = 400 bar. 22mm OD-42mm OD = 250 bar. Heavy-duty 6mm OD-16mm OD = 630 bar. 20mm OD-25mm OD = 400 bar. 30mm OD-38mm OD = 250 bar. These pressures are for guide purposes only and please consult our technical department for specific applications

Additional Variants

Product Name
Product Code
Thread Size
Outside Diameter mm
Maximum Working Pressure bar
Buy Price
M310-14392
M26 x 1.5
18
400
£22.96

Immediately Available - 19 in stock

M310-14392
M12 x 1.5
6
500
£6.38

Immediately Available - 112 in stock

M310-14392
M36 x 2
28
250
£44.00

Immediately Available - 20 in stock

M310-14392
M14 x 1.5
8
500
£6.61

Immediately Available - 338 in stock

M310-14392
M45 x 2
35
250
£68.66

Immediately Available - 14 in stock

M310-14392
M30 x 2
22
250
£29.23

Immediately Available - 27 in stock

M310-14392
M52 x 2
42
250
£93.61

Available to Order

M310-14392
M22 x 1.5
15
400
£14.31

Immediately Available - 115 in stock

M310-14392
M16 x 1.5
10
500
£8.27

Immediately Available - 188 in stock
