M310-18724

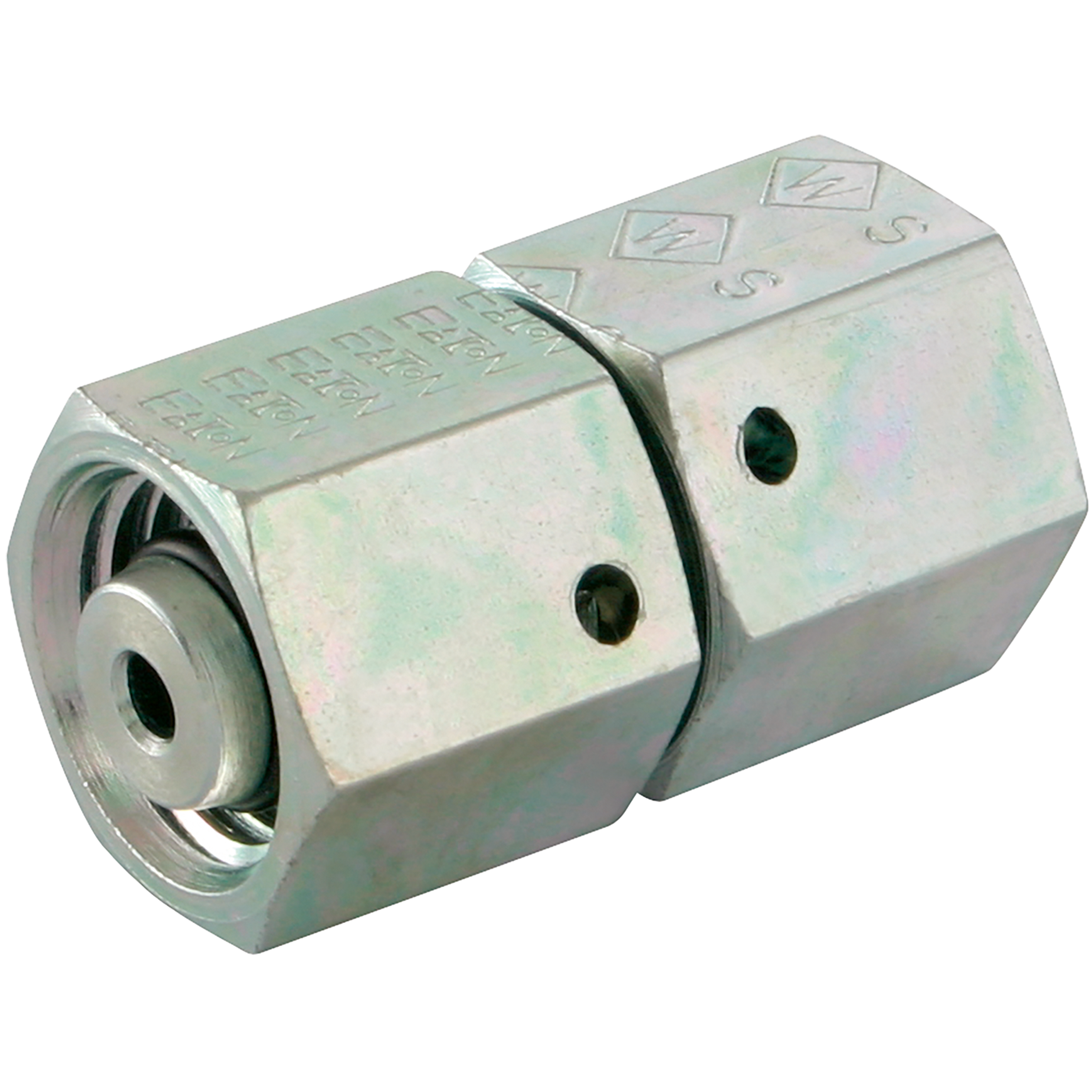

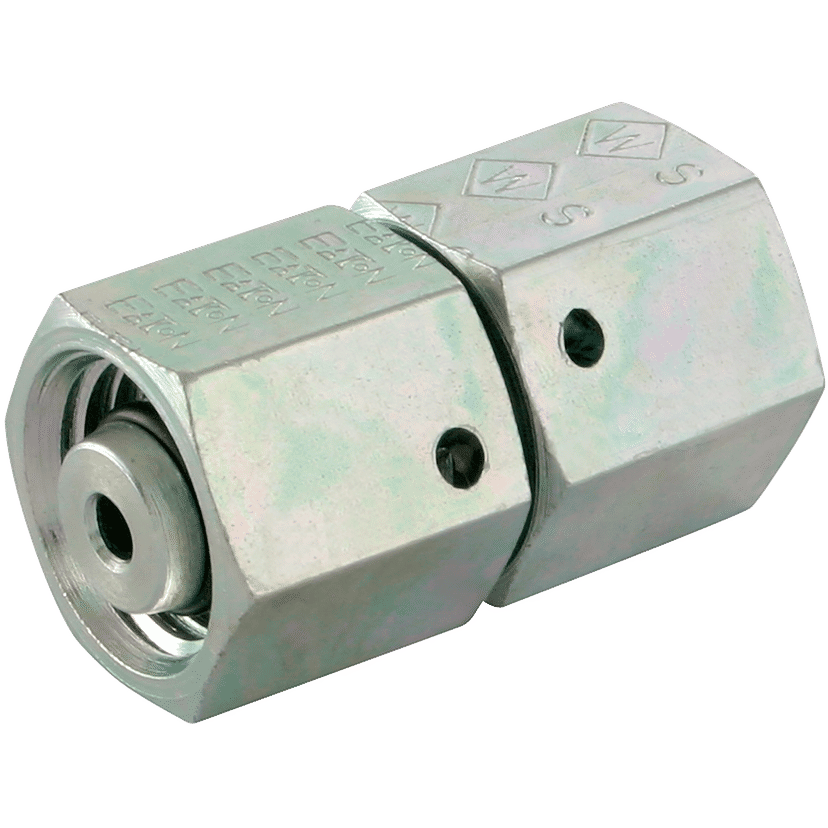

Danfoss Waltech 30/25MM OD Straight Swivel Coupler (S)

Product Code: SNV30/25S



...

Immediately Available - 11 in stock

tech sheet 1694

Details

Material
Chromium Plated Steel
Outside Diameter A mm
30
Series
Heavy Duty
Outside Diameter B mm
25
Maximum Working Pressure bar
400
Brand
Danfoss Waltech
Outside Diameter mm
30

Specification

30mm Outside Diameter x 25mm Outside Diameter, Hydraulic DIN 2353 Compression Fitting, Heavy Duty, Adjustable Straight, Chromium Plated Steel, Maximum Working Pressure 400 bar, Danfoss Waltech

Cutting Ring Couplings DIN 2353/ISO 8434-1. Danfoss Waltech Hydraulic BITE TYPE Fittings. Danfoss Waltech offer a complete product range at the highest quality: Based on this principle Danfoss Waltech offers one of the most comprehensive product ranges for tube coupling systems. The Danfoss Waltech programme includes cutting ring, soft seal, flared couplings and flange couplings, plus a wide range of accessories. The Danfoss Waltech range of hydraulic compression fittings cover sizes from 6mm OD to 42mm OD in light-duty and from 6mm OD to 38mm OD in heavy-duty. Manufactured to DIN 2353 standard, mild steel with C6F free surface coating, each compression fitting is supplied complete with cutting ring and nut. Pressure Range Guide: Light Duty 6mm OD-18mm OD = 400 bar. 22mm OD-42mm OD = 250 bar. Heavy-duty 6mm OD-16mm OD = 630 bar. 20mm OD-25mm OD = 400 bar. 30mm OD-38mm OD = 250 bar. These pressures are for guide purposes only and please consult our technical department for specific applications

Additional Variants

Product Name
Product Code
Outside Diameter mm
Maximum Working Pressure bar
Outside Diameter B mm
Outside Diameter A mm
Seal Type
Buy Price
M310-18724
10
800
8
10
£28.33

Available to Order

M310-18724
38
400
25
38
£78.60

Available to Order

M310-18724
10
800
6
10
O-Ring
£26.24

Immediately Available - 4 in stock

M310-18724
12
630
10
12
£24.81

Available to Order

M310-18724
25
420
20
25
£37.51

Available to Order

M310-18724
16
630
12
16
£31.96

Available to Order

M310-18724
38
400
30
38
£75.23

Available to Order

M310-18724
8
800
6
8
£26.29

Available to Order

M310-18724
20
420
12
20
£36.25

Available to Order

M310-18724
30
400
20
30
£56.60

Available to Order

M310-18724
16
630
10
16
£34.32

Available to Order

M310-18724
38
400
20
38
£73.15

Available to Order

M310-18724
30
400
16
30
£59.18

Available to Order

M310-18724
12
630
8
12
£30.69

Available to Order

M310-18724
25
420
16
25
£40.65

Available to Order

M310-18724
20
420
16
20
£33.61

Immediately Available - 1 in stock

M310-18724
12
630
6
12
£32.78

Available to Order
