Details
Thread Type A
BSPP
Working Temperature
-40°C to +90°C
Material
Brass
Brand
Parker
Maximum Working Pressure bar
250
Thread Gender B
Female
Thread Type
BSPP
Thread Size A
1/2"
Thread Type B
BSPP
Thread Gender A
Female
Thread Size B
3/4"
Description

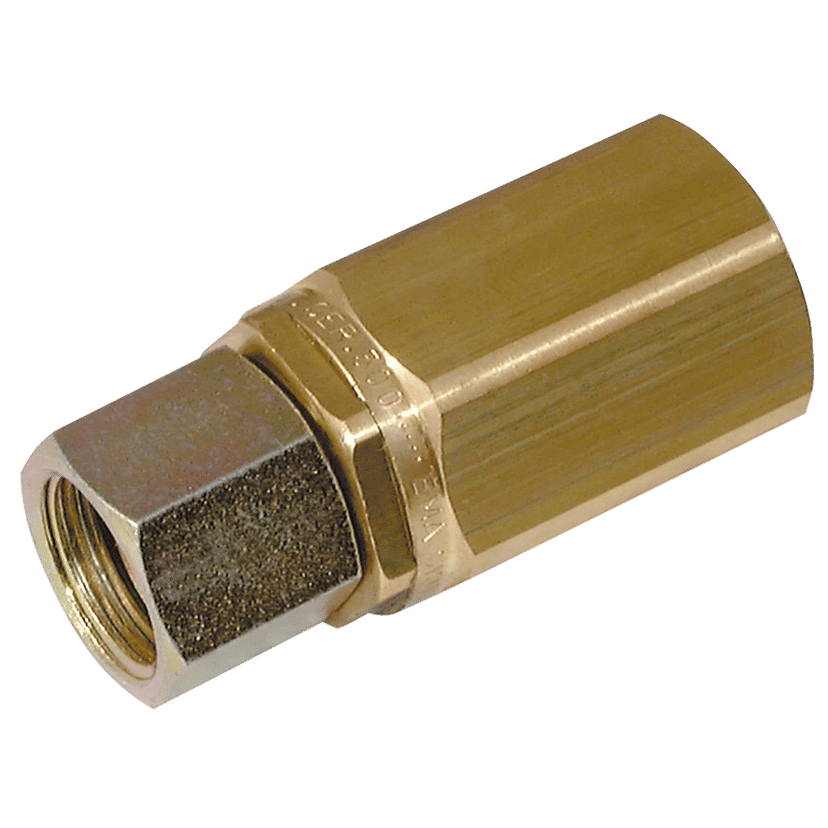

1/2" BSP Parallel Female x 3/4" BSP Parallel Female, Valved, Hydraulic Quick Release, DN11, TDG Swivel Joint, Brass, Nitrile Seal, Working Temperature -40°C to +90°C, Maximum Working Pressure 250 bar, Parker
Description: TDG Swivel joints can be used in hydraulic systems where a rotating connection is required for example in add-on units with rotational movements of up to 360°. TDG Swivel joints minimise the extreme wear occurring in the hoses of the hydraulic system. A patented Pressure Relief Unit guarantees a long service life and smooth running even in the event of pressure hammers. Standard Version: Body: Brass, Nitrile Seal. Advantages: The housing is made of brass the rotating shaft is made so surface-treated steel or stainless steel. Sturdy construction with two needle roller bearings and an axis sliding bearing, adapted for combination with standardised hydraulic components. Has a maximum rotating speed 60 RPM. Applications: Elevating mechanism, building machinery, materials handling technology and industrial plants. RF: Swivel Axis
