M311-82223
Aignep logo

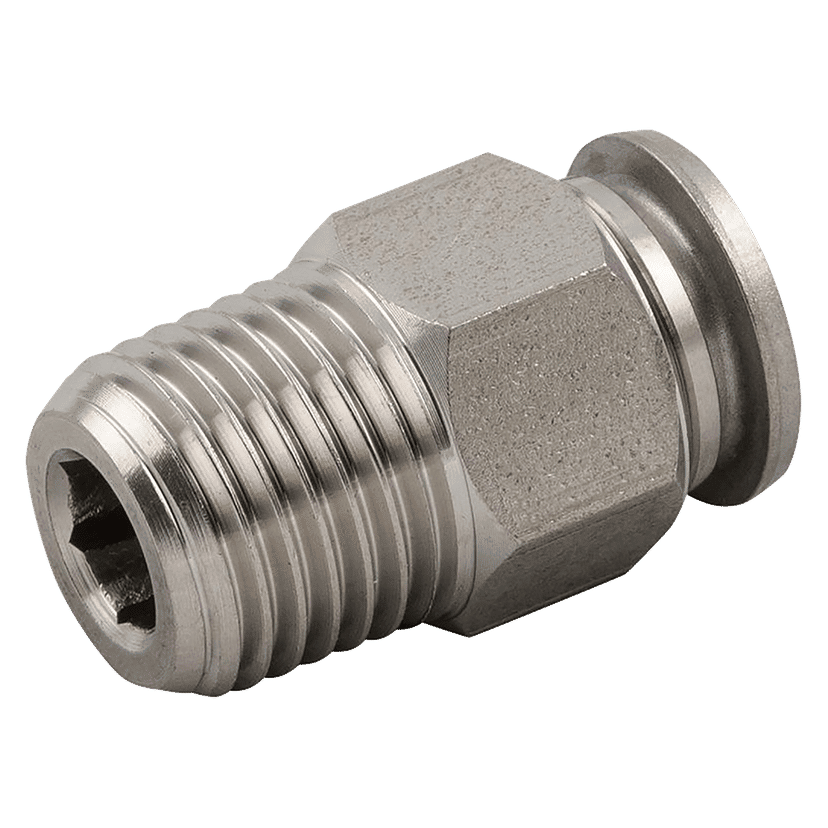

Aignep 12MM OD X 3/8" BSPT Male Stud 316 SS

60000-12-3/8



...

tech sheet 1378

Details

Thread Size
3/8"
Working Temperature
-20°C to +225°C
Outside Diameter mm
12
Thread Type
BSPT
Thread Gender
Male
Material
Stainless Steel
Maximum Working Pressure bar
15
Brand
Aignep

Description

3/8" BSP Taper Male x 12mm Outside Diameter, Push-in Fitting, Stud, 316 Stainless Steel, Working Temperature -20°C to +225°C, Maximum Working Pressure 15 bar, Aignep

The collet is made in stainless steel 316L ensures the perfect tube clamping with every kind of material without damaging the surface. The connection between the tube and the fitting ensures a total tightness even in severe conditions such as impact and vibrations. All of the threads from this range have been equipped with tightening parts, which allow the direct assembly of the fittings, reducing the installation time. This series is fully made of stainless steel AISI 316L and developed to be used with aggressive fluids and food applications. Also ideal for use in salty environments and in machines that need frequent washing with aggressive detergents. Certified NSF 169 and conformed to NSF 61 & NSF 372 standards. All parallel threads have a Food FKM seal as standard. Food FKM o-rings as standard for all parallel threads. All the straight adaptors, with taper or parallel threads can be assembled also with allen keys and it is possible to use then in reduced spaces.
