M311-94327

FT Pro 3/16" 100R2AT Hydraulic Hose

Product Code: 100R2AT-03-100



...

Immediately Available - 1 in stock

tech sheet 5002

Details

Length Metres
100
Hose Diameter (DN)
14.1
Series
Steel Braided
Colour
Black
Brand
FT Pro
Material
Synthetic Rubber
Standard
EN853-2 DIN20022
Maximum Working Pressure bar
415
Outside Diameter mm
14.1
Inside Diameter Inch
3/16"
Bend Radius mm
90
Working Temperature
-40°C to +100°C

Specification

14.1mm Outside Diameter x 3/16" Inside Diameter, Hydraulic Hose, 2 Wire, 100R2AT, 100 Metre Coil, 90mm Bend Radius, Black, Synthetic Rubber, Wire Braid, EN853-2 DIN20022, Bursting Pressure 1650 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 415 bar, FT Pro

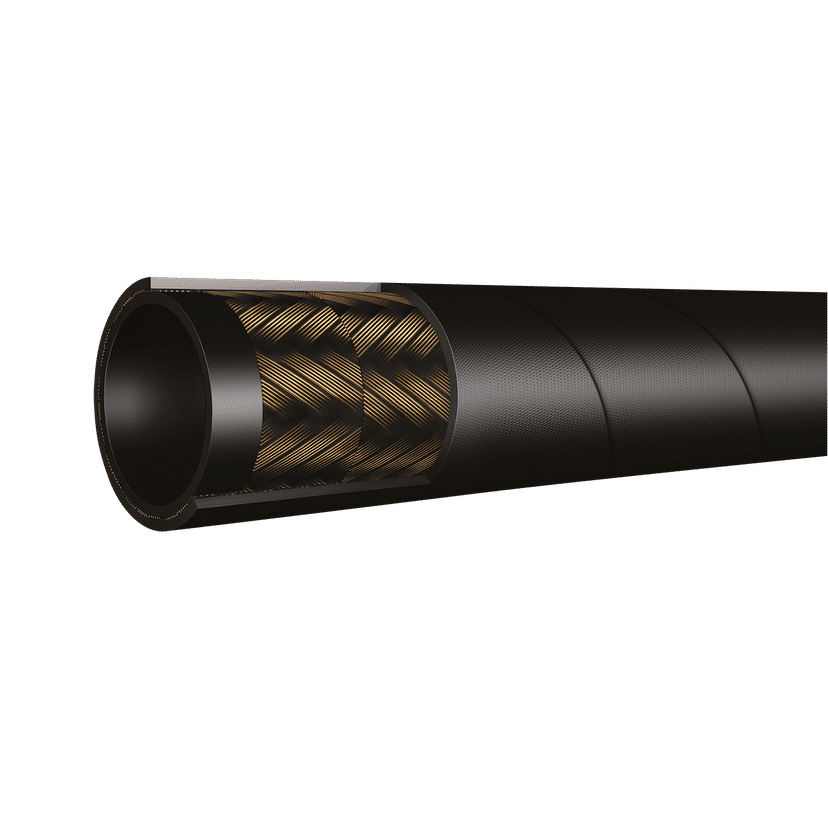

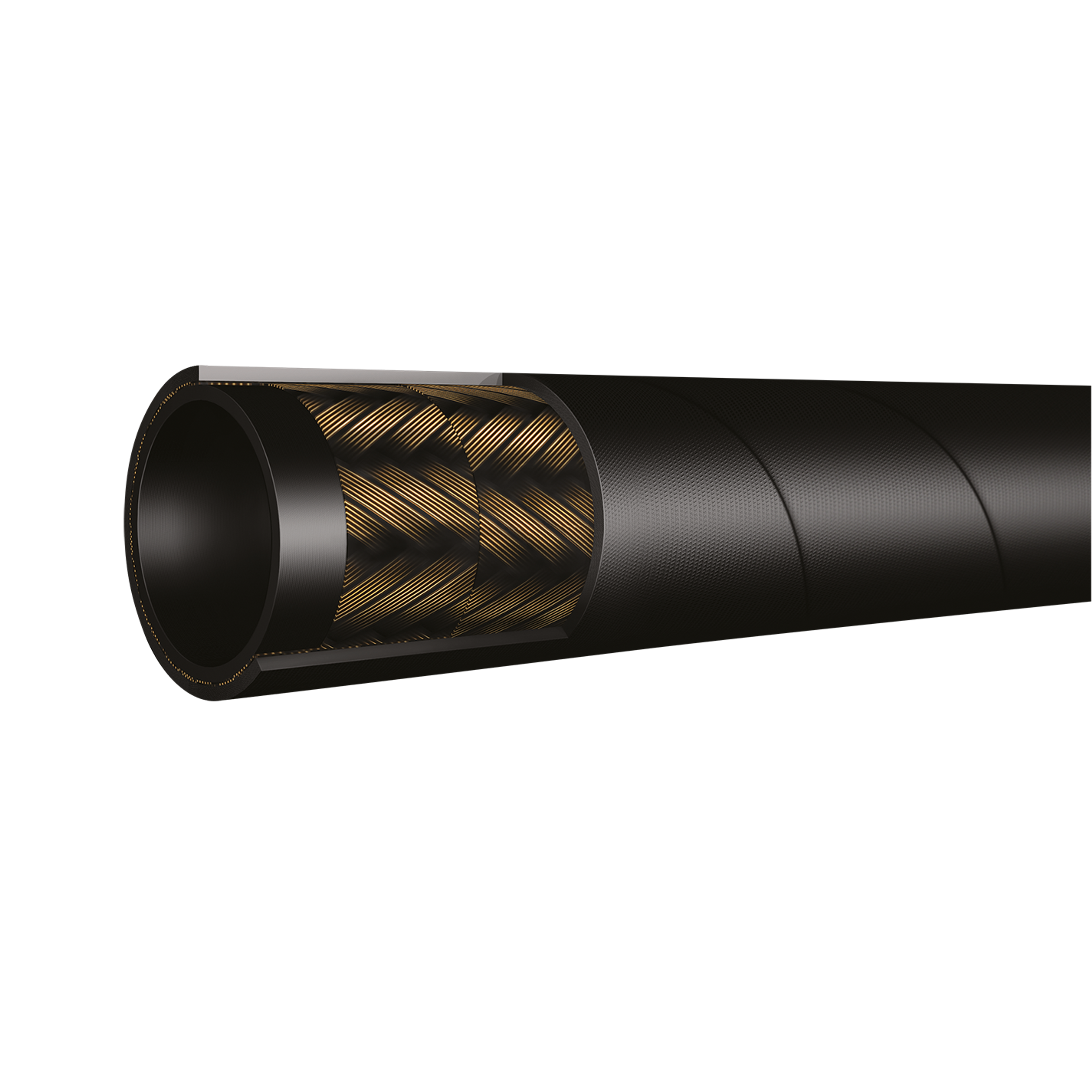

Application: Medium pressure hydraulic applications. Specification: DIN 20022, EN853 - 2 exceeds SAE100R2AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 2 single steel wire braids. Outer cover: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request

Additional Variants

Product Name
Product Code
Inside Diameter Inch
Bend Radius mm
Outside Diameter mm
Maximum Working Pressure bar
Hose Diameter (DN)
Buy Price
M311-94327
1/2"
180
23.1
275
23.1
£812.35

Immediately Available - 66 in stock

M311-94327
3/8"
125
19.7
330
19.7
£665.81

Immediately Available - 41 in stock

M311-94327
1/4"
100
15.7
400
15.7
£505.10

Immediately Available - 78 in stock

M311-94327
5/8"
205
26.3
250
26.3
£995.55

Available to Order

M311-94327
5/16"
115
17.3
350
17.3
£579.58

Immediately Available - 18 in stock

M311-94327
1"
300
38.9
165
38.9
£1,574.49

Available to Order

M311-94327
3/4"
240
30.2
215
30.2
£1,172.88

Immediately Available - 10 in stock
