M312-24009

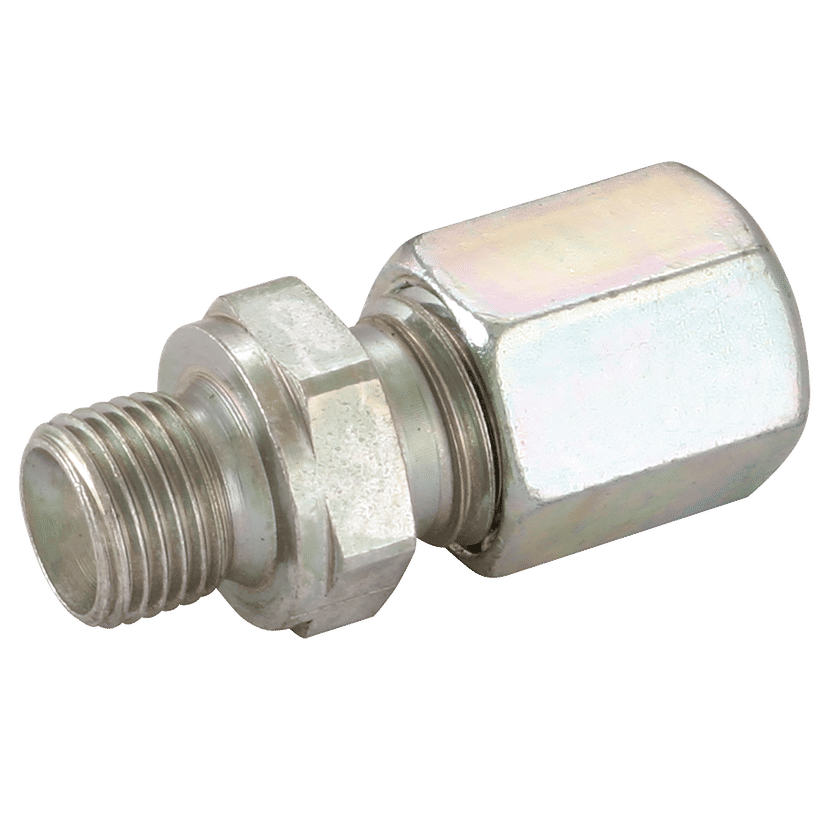

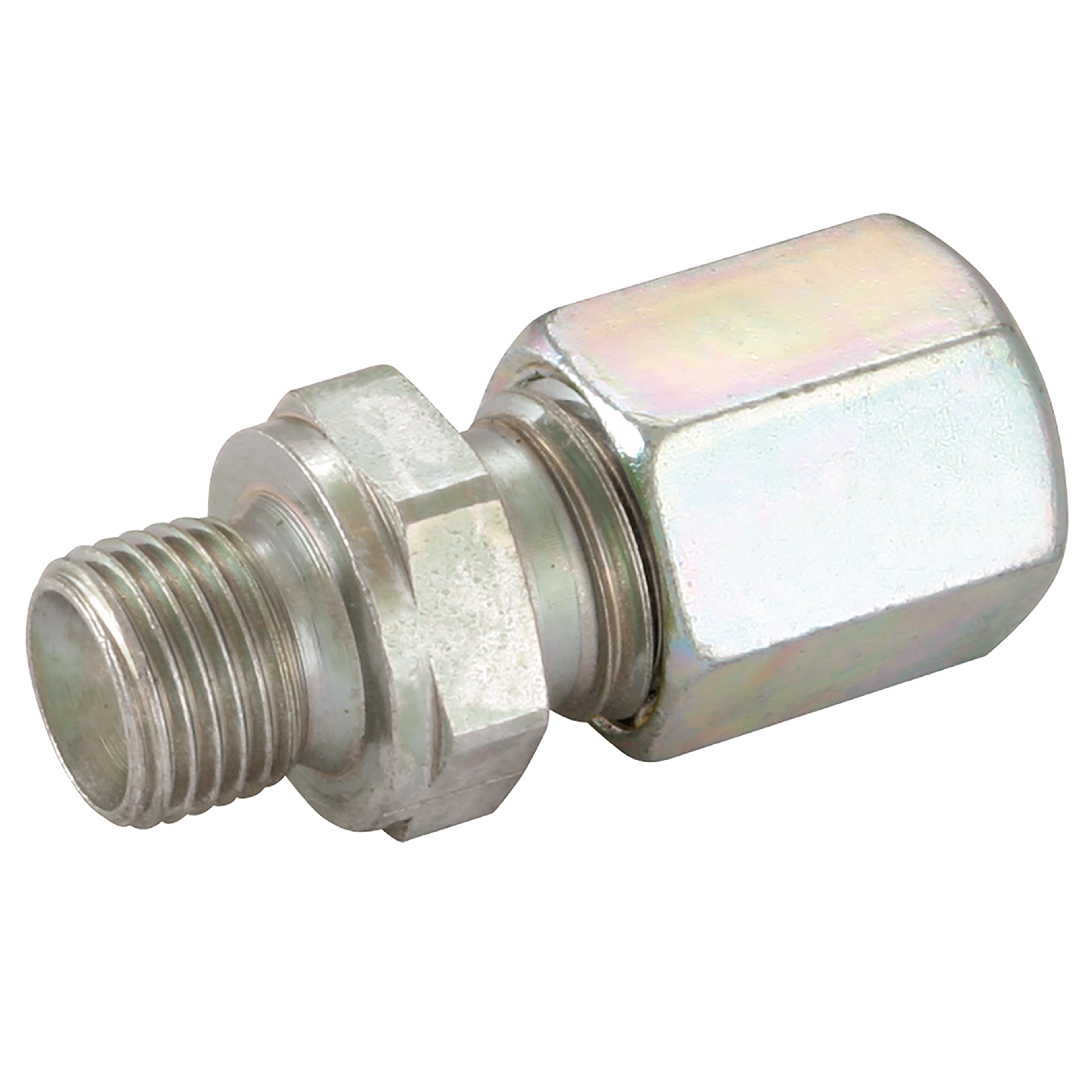

Danfoss Waltech 15MM OD X 3/8" BSPP Male Stud Steel (L)

Product Code: GEV15LR3/8FOA



...

Available to Order

tech sheet 20898

Details

Material
Chromium Plated Steel
Thread Size
3/8"
Outside Diameter A mm
15
Series
Light Duty
Maximum Working Pressure bar
400
Thread Type
BSPP
Thread Gender
Male
Brand
Danfoss Waltech

Specification

3/8" BSP Parallel Male x 15mm Outside Diameter, Hydraulic DIN 2353 Compression Fitting, 60° Cone, Light Duty, Stud Coupling, Chromium Plated Steel, Maximum Working Pressure 400 bar, Danfoss Waltech

Cutting Ring Couplings DIN 2353/ISO 8434-1. Danfoss Waltech Hydraulic BITE TYPE Fittings. Danfoss Waltech offer a complete product range at the highest quality: Based on this principle Danfoss Waltech offers one of the most comprehensive product ranges for tube coupling systems. The Danfoss Waltech programme includes cutting ring, soft seal, flared couplings and flange couplings, plus a wide range of accessories. The Danfoss Waltech range of hydraulic compression fittings cover sizes from 6mm OD to 42mm OD in light-duty and from 6mm OD to 38mm OD in heavy-duty. Manufactured to DIN 2353 standard, mild steel with C6F free surface coating, each compression fitting is supplied complete with cutting ring and nut. Pressure Range Guide: Light Duty 6mm OD-18mm OD = 400 bar. 22mm OD-42mm OD = 250 bar. Heavy-duty 6mm OD-16mm OD = 630 bar. 20mm OD-25mm OD = 400 bar. 30mm OD-38mm OD = 250 bar. These pressures are for guide purposes only and please consult our technical department for specific applications

Additional Variants

Product Name
Product Code
Outside Diameter A mm
Thread Size
Maximum Working Pressure bar
Buy Price
M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV8LRFOA
8
1/4"
400
£4.20

Immediately Available - 778 in stock

M312-24009

Danfoss Waltech 10MM OD X 3/8" BSPP Male Stud Steel (L)

GEV10LR3/8FOA
10
3/8"
400
£8.79

Immediately Available - 391 in stock

M312-24009

Danfoss Waltech 22MM OD X 3/4" BSPP Male Stud Steel (L)

GEV22LRFOA
22
3/4"
250
£14.71

Immediately Available - 325 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV8LR1/8FOA
8
1/8"
400
£20.35

Immediately Available - 26 in stock

M312-24009

Danfoss Waltech 06MM OD L X 3/8 BSP Male 60 Cone

GEV6LR3/8FOA
6
3/8"
400
£16.32

Immediately Available - 238 in stock

M312-24009

Danfoss Waltech 22MM OD X 1/2" BSPP Male Stud Steel (L)

GEV22LR1/2FOA
22
1/2"
250
£30.04

Immediately Available - 117 in stock

M312-24009

Danfoss Waltech 15MM OD X 1/2" BSPP Male Stud Steel (L)

GEV15LRFOA
15
1/2"
400
£7.97

Immediately Available - 418 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV6LR1/4FOA
6
1/4"
400
£4.48

Immediately Available - 145 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV35LRFOA
35
1.1/4"
250
£38.24

Immediately Available - 150 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV28LRFOA
28
1"
250
£32.36

Immediately Available - 175 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV6LRFOA
6
1/8"
400
£2.68

Immediately Available - 208 in stock

M312-24009

Danfoss Waltech 18MM OD X 3/4" BSPP Male Stud Steel (L)

GEV18LR3/4FOA
18
3/4"
400
£19.04

Immediately Available - 136 in stock

M312-24009

Danfoss Waltech 12MM OD X 1/2" BSPP Male Stud Steel (L)

GEV12LR1/2FOA
12
1/2"
400
£7.04

Immediately Available - 457 in stock

M312-24009

Danfoss Waltech 12MM OD X 3/8" BSPP Male Stud Steel (L)

GEV12LRFOA
12
3/8"
400
£5.25

Immediately Available - 456 in stock

M312-24009

Danfoss Waltech 10MM OD X 1/2" BSPP Male Stud Steel (L)

GEV10LR1/2FOA
10
1/2"
400
£11.13

Immediately Available - 171 in stock

M312-24009

Danfoss Waltech 18MM OD X 1/2" BSPP Male Stud Steel (L)

GEV18LRFOA
18
1/2"
400
£9.93

Immediately Available - 325 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV8LR3/8FOA
8
3/8"
400
£9.55

Immediately Available - 45 in stock

M312-24009

Danfoss Waltech Male Stud Coupling Light Duty

GEV28LR3/4FOA
28
3/4"
250
£51.21

Immediately Available - 85 in stock

M312-24009

Danfoss Waltech 10MM OD X 1/4" BSPP Male Stud Steel (L)

GEV10LRFOA
10
1/4"
400
£3.67

Immediately Available - 1561 in stock

M312-24009

Danfoss Waltech 12MM OD X 1/4" BSPP Male Stud Steel (L)

GEV12LR1/4FOA
12
1/4"
400
£5.07

Immediately Available - 371 in stock
