Details
Stem OD Inch
1/2"
Working Temperature
-20°C to +80°C
Material
Brass Nickel Plated
Outside Diameter inch
3/8"
Maximum Working Pressure bar
15
Brand
Aignep
Description

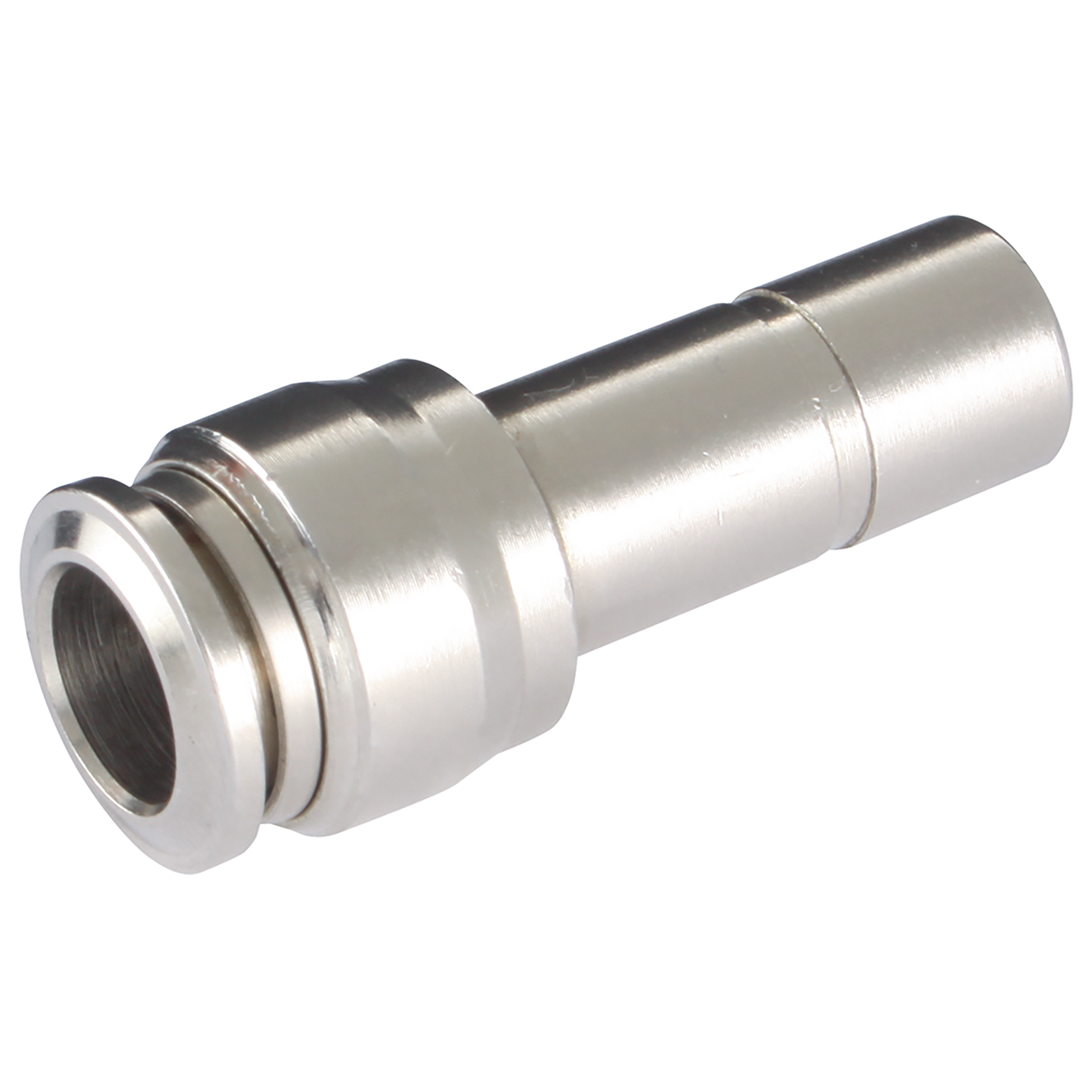

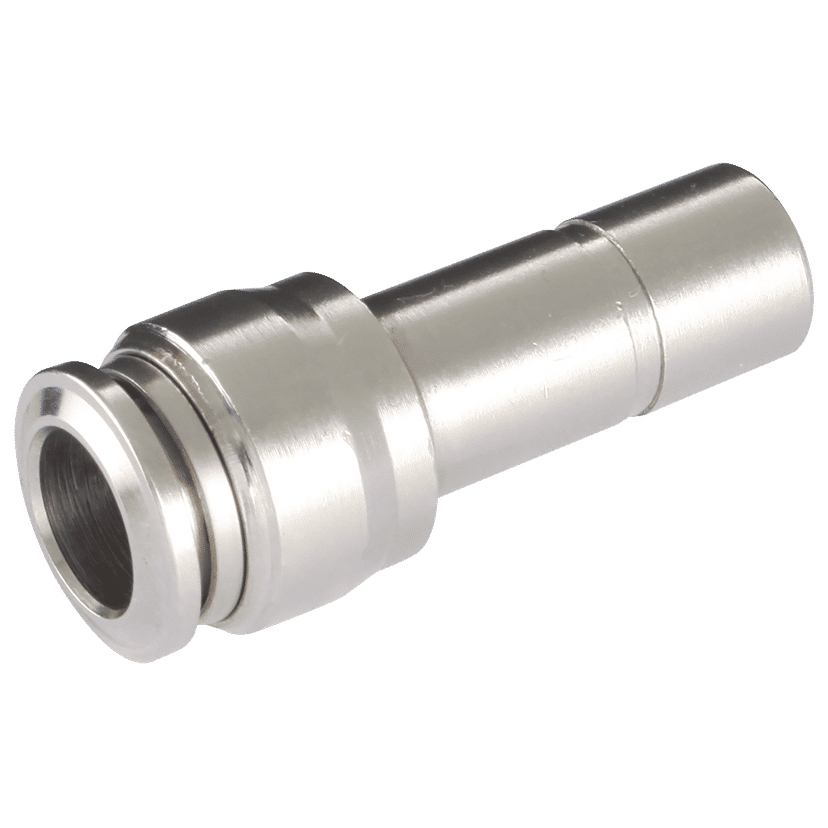

3/8" x 1/2" Stem Outside Diameter, 89000 Series, Imperial Tube Fitting, Reducing, Straight Stem Connector, Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 15 bar, Aignep
The clamping washer made in stainless steel ensures the perfect grip on the tube with all kinds of material without damage to the surface. The connection between the tube and the fitting ensure a tight seal even in severe conditions such as impact & vibration. The design of the geometric seal ensures the perfect fit for vacuum applications. Suitable to be used with PA6, PA11, PA12, Polyethylene, Polyurethane (minimum hardness of 98 shore). Material: Body: Brass Nickel plated. Collet: Brass Nickel plated. Capsule: Brass Nickel plated. Clamping Washer: Stainless Steel 301. Media: Compressed air, Vacuum, Water.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. Code8970000003List-Discount-Buy£8.18Line£8.18Attention! Only 5 in stock
- Prod. Code8970000002List-Discount-Buy£4.77Line£4.77
Attention! Only 2 in stock
- Prod. Code8970000001List-Discount-Buy£9.82Line£9.82
47 in stock
- Prod. Code8970000004List-Discount-Buy£8.48Line£8.48
Attention! Only 6 in stock
