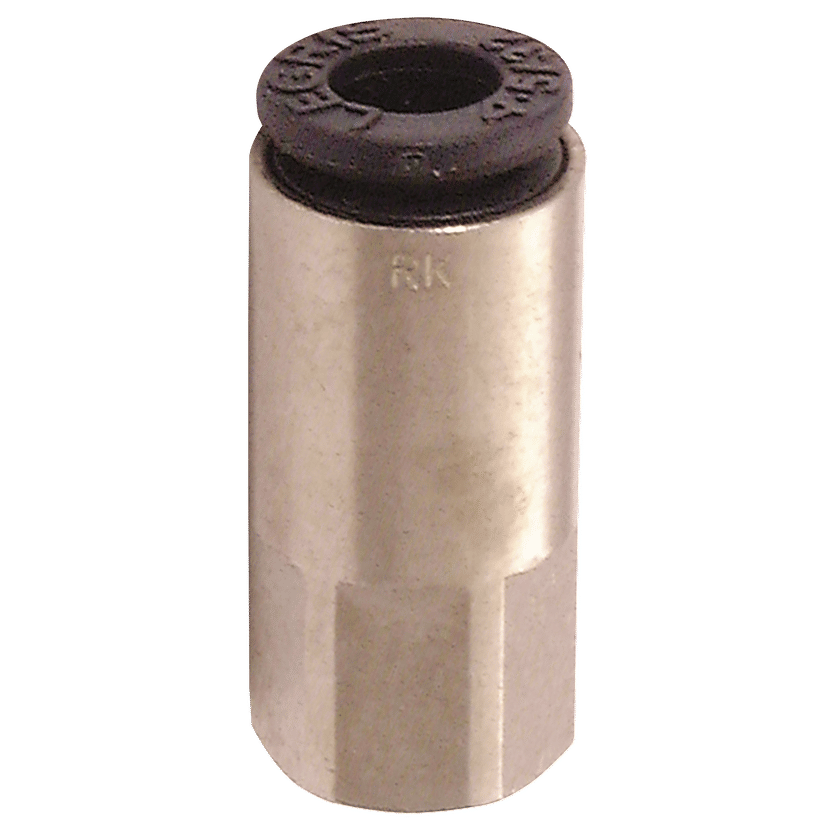

Parker Legris 08MM OD Tube X 1/4" BSPP Female Stud
Product Code: LE-3114 08 13...
Immediately Available - 21 in stock
tech sheet 10626
Details
Working Temperature
-20°C to +80°C
Thread Size
1/4"
Series
LF3000
Maximum Working Pressure bar
20
Material
Plastic/Brass Nickel Plated
Outside Diameter mm
8
Brand
Parker Legris
Thread Type
BSPP
Thread Gender
Female
Specification
1/4" BSP Parallel Female x 8mm Outside Diameter, LF3000 Metric Push-in Tube Fitting, Stud, Plastic/Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris
Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.
