Details
Working Temperature
-20°C to +80°C
Outside Diameter mm
10
Maximum Working Pressure bar
20
Material
Plastic/Brass Nickel Plated
Brand
Parker Legris
Description

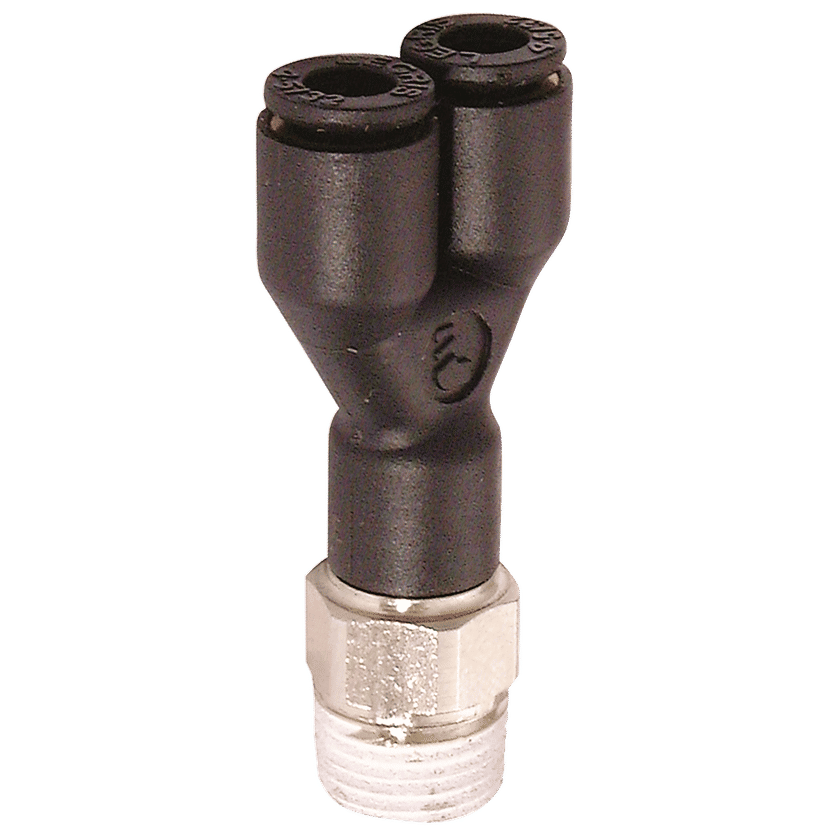

3/8" BSP Taper Male x 10mm Outside Diameter, LF3000 Metric Push-in Tube Fitting, Stud Y, Plastic/Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris
Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. CodeLE-3148 06 13List-Discount-Buy£10.80Line£10.80Out of stock. Available for backorder
- Prod. CodeLE-3148 12 21List-Discount-Buy£11.45Line£11.45
Attention! Only 8 in stock
