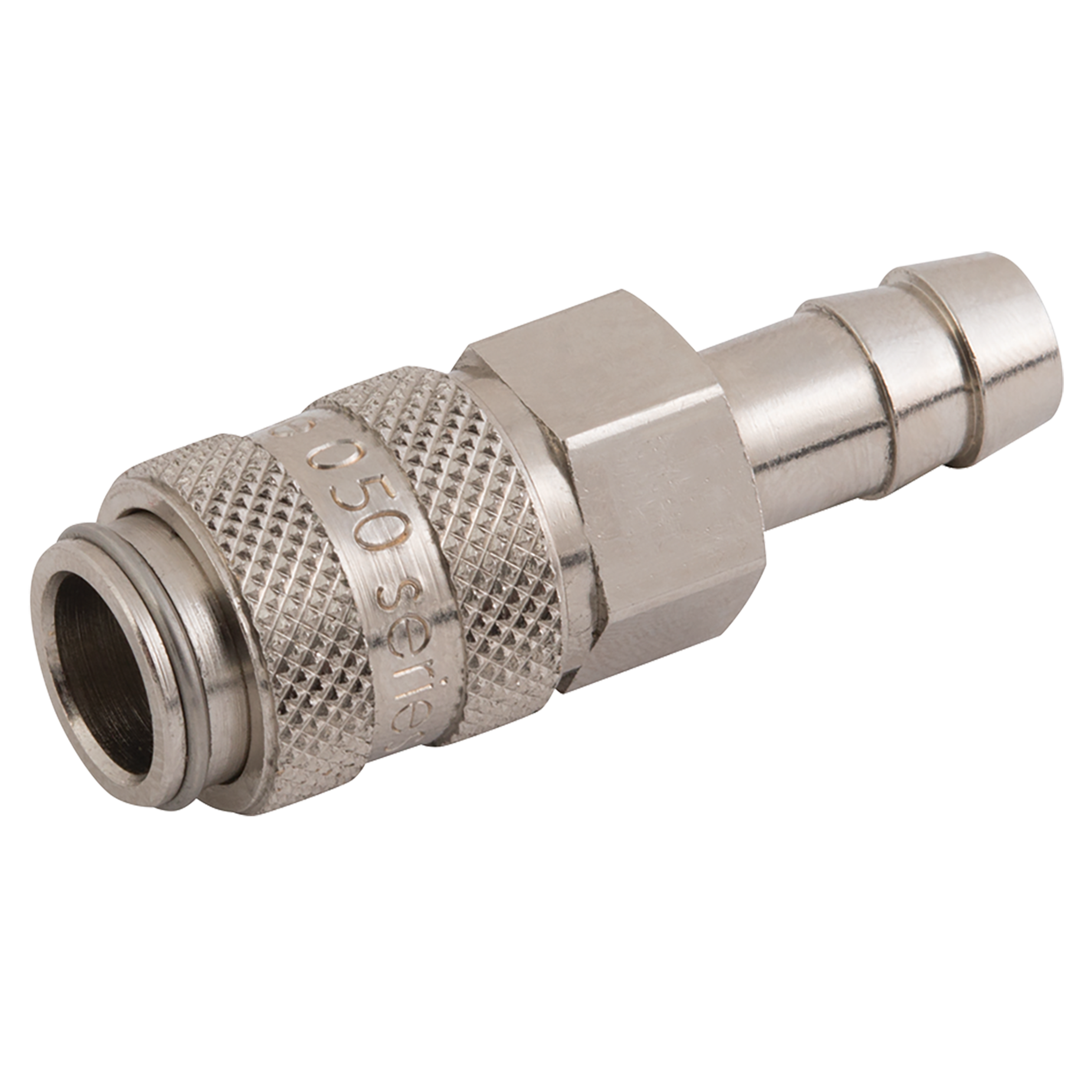

KEE 050 SERIES 9MM HOSE TAIL COUPLING

050CVHT09BNN

...

tech sheet 60437

Details

Maximum Working Pressure bar

Working Temperature

-20°C to +100°C

Brand

Kee

Material

Brass Nickel Plated

Description

Pneumatic Quick Release, Coupling, Hose Tail, Series 050 Interchangeable Series 21, to Suit 9mm Hose Inside Diameter, Brass Nickel Plated, Nitrile, Working Temperature -20°C to +100°C, Maximum Working Pressure 35 bar, Kee

EPDM & Viton Available on Request. Back Body: Brass (MS 58) Nickel Plated. Valve Body: Brass (MS 58) Nickel Plated. Sleeve: Brass (MS 58) Nickel Plated. Spring and Locking Ring: Stainless Steel 301. Locking Balls: Stainless Steel 301. Seals: Nitrile. Interchangeable with the Rectus 21 Series, Rectus 90 Series, Camozzi 5000. Application:. Industrial coupling for use in instrumentation and pneumatic systems.

Additional Variants

Product Name

Prod. Code

List

Discount

Buy

Line

Product Name
KEE 050 SERIES 8MM HOSE TAIL COUPLING
Prod. Code
050CVHT08BNN
List
-
Discount
-
Buy
£19.57
Line
£19.57
Attention! Only 1 in stock
Product Name
KEE 050 SERIES 4MM HOSE TAIL COUPLING
Prod. Code
050CVHT04BNN
List
-
Discount
-
Buy
£20.86
Line
£20.86
Attention! Only 6 in stock
