Details
Thread Size
1.1/16"
Brand
dnp
Working Temperature
-25°C to +100°C
Material
Steel
Series
ISO 16028 Standard
Thread Type
UNF
Maximum Working Pressure bar
350
Seal Material
Nitrile
Thread Gender
Female
Description

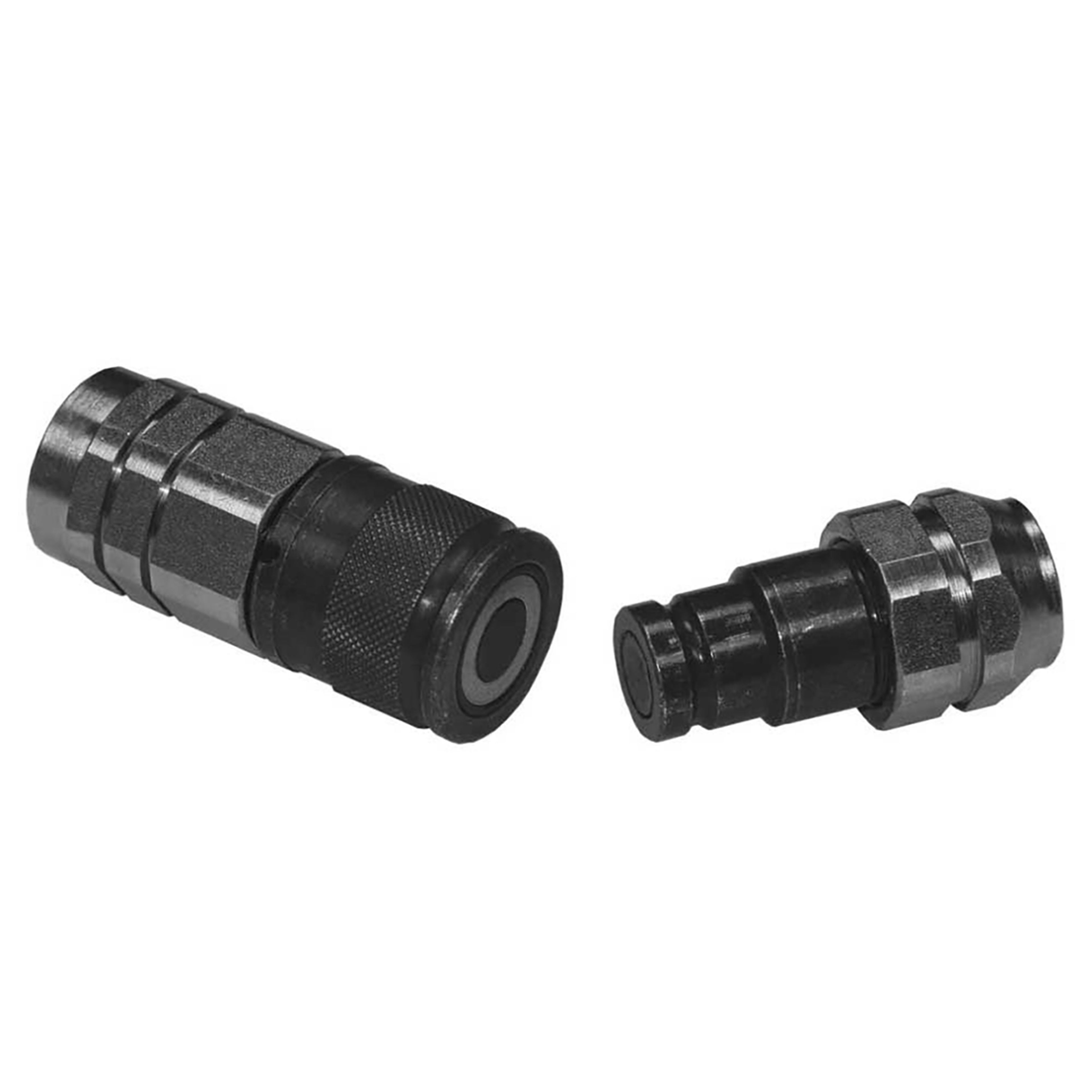

1.1/16 UNF Female, Valved, Hydraulic Quick Release, Coupling, Flat Face, PLT4 Series, Steel, Nitrile Seal, ISO 16029, Standard, Working Temperature -25°C to +100°C, Maximum Working Pressure 350 bar, dnp
High working pressures to 7.350 psi /500 bar, Sleeve lock device, Locking radial balls, Connection under pressure not allowed. PLT 4 series is ideal for non-Spill High pressure and High impulse applications. Standard: ISO 16028, Occlusion: flat face, Locking: radial balls, Material: steel, Finishing: Zn-Fe (Cr III) and Zn-Ni, Available Threads: BSPP, NPT, SAE, metric, Standard Seals: Nitrile and PU, Optional Seals: Viton, EPDM, Connection Under Pressure: not allowed
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. CodePLT4.1319.032List-Discount-Buy£65.94Line£65.94Attention! Only 7 in stock
