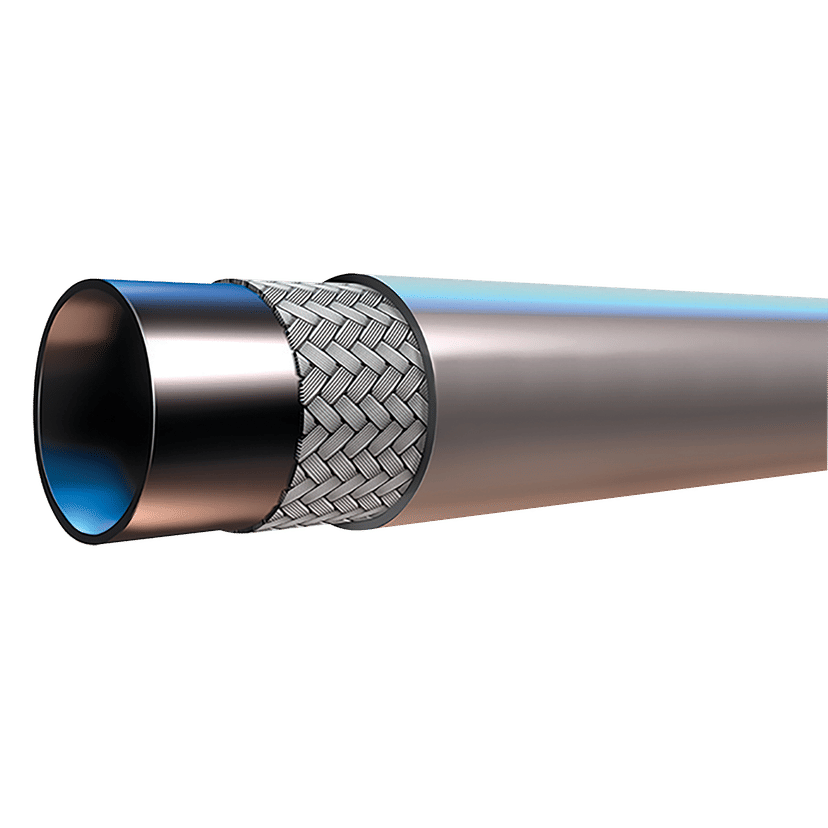

Parker 15.9MM OD X 3/8" ID Multipurpose PUSH-LOK Hose
Product Code: 801PLUS-6-GRA-RL
...
Available to Order
tech sheet 68096
Details
Colour
Grey
Length Metres
100
Brand
Parker
Inside Diameter Inch
3/8"
Series
Steel Braided
Maximum Working Pressure bar
24
Material
Nitrile
Outside Diameter mm
15.9
Bend Radius mm
75
Hose Diameter (DN)
15.9
Working Temperature
-40°C to +100°C
Specification
15.9mm Outside Diameter x 3/8" Inside Diameter, 801-Plus, Multipurpose, Push-Lok Hose, Grey, 75mm Bend Radius, Nitrile Inner, High-tensile Fibre Braid Reinforcement, Working Temperature -40°C to +100°C, Burst Pressure 97 bar, Maximum Working Pressure 24 bar, Parker
801PLUS multipurpose hose has an improved nitrile tube with extended fluid compatability and improved oil compatability and provides quick and easy assembly/dissassembly advantage and the fullest range of colour coding to benefit your operations. Features: Very flexible, wide range of colours, available up to size -16, nitrile inner tube-extended fkuid compatability, improved oil compatibilty. Recommended fluids: Air, water, water-oil emulsions, water-glycpl and mineral based hydraulic lubricating oils.
Additional Variants
Product Name
Product Code
Hose Diameter (DN)
Bend Radius mm
Outside Diameter mm
Inside Diameter Inch
Length Metres
Maximum Working Pressure bar
Buy Price
12.7
65
12.7
1/4"
100
24
£2,103.36
Immediately Available - 1 in stock
23
150
23
5/8"
80
21
£2,795.99
Available to Order
26.2
180
26.2
3/4"
80
21
£3,391.72
Available to Order
19.8
125
19.8
1/2"
100
21
£2,874.79
Available to Order
