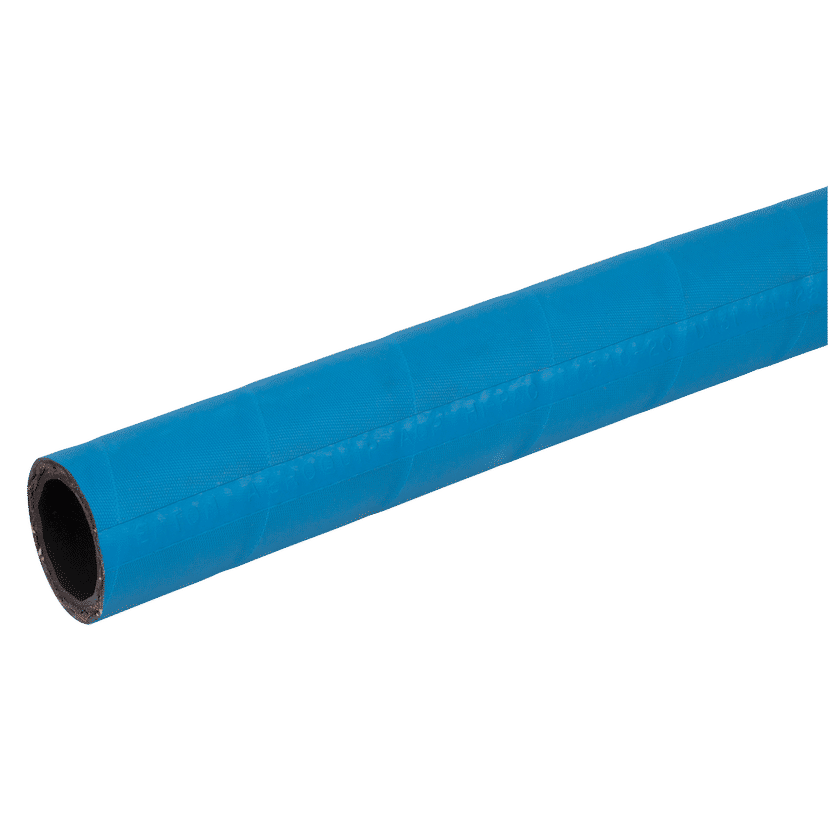

Danfoss Aeroquip 28.2MM OD X 3/4" ID Hydraulic Hose FC510

Product Code: FC510-12

...

Details

Standard

SAE 100R2

Outside Diameter mm

28.2

Hose Diameter (DN)

28.2

Series

Steel Braided

Material

AQP Elastomer

Inside Diameter Inch

3/4"

Bend Radius mm

178

Colour

Blue

Working Temperature

-40°C to 150°C

Length Metres

Brand

Danfoss Aeroquip

Specification

28.2mm Outside Diameter x 3/4" Inside Diameter, Hydraulic Hose, 1 Wire, FC510, Cut to Length, Per Metre, 178mm Bend Radius, Blue, AQP Elastomer, HI-PAC Wire Braid, SAE 100R2, Bursting Pressure 900 bar, Working Temperature -40°C to +150°C, Maximum Working Pressure 155 bar, Danfoss Aeroquip
