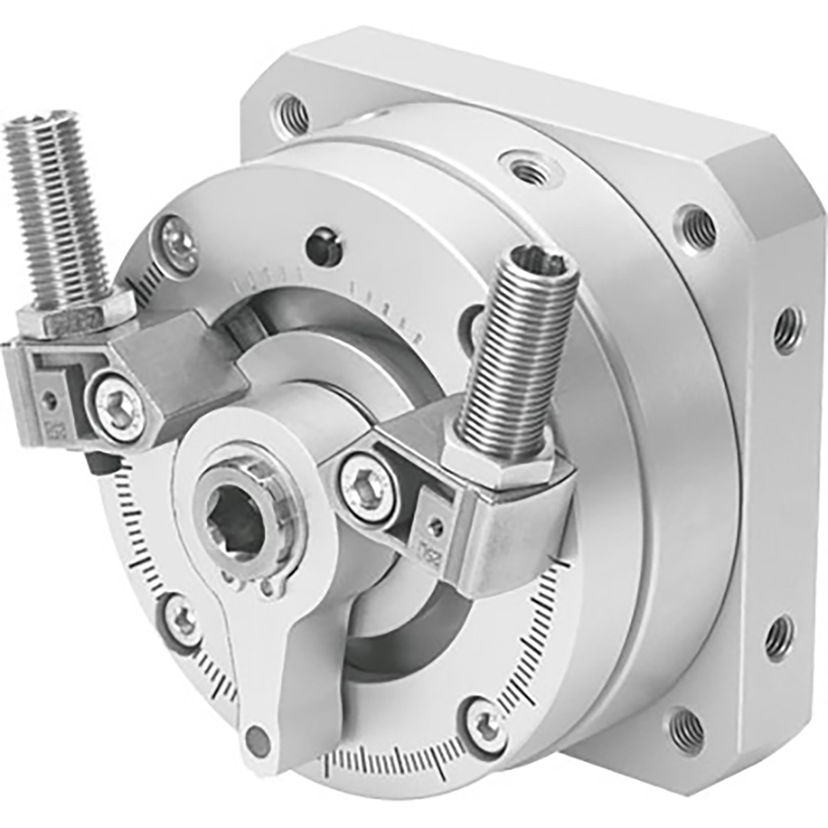

Festo M5 Female Metric Semi-Rotary
Product Code: 566203Manufacturer Code: DSM-12-270-P1-A-B
...
Available to Order
Details
Seal Material
TPE-U(PU)
Mounting
Any
Working Pressure bar
2 to 10
Material
Wrought Aluminium Alloy
Working Temperature
-10°C to +60°C
Rotation Angle
0 to 246°
Thread Size
M5
Brand
Festo
Cushioning
Pad Cushioning
Thread Type
Metric
Size
1/2"
Magnetic
Y
Thread Gender
Female
Specification
Semi-Rotary Drive Dsm-12-270-P1-A-B With Spigot Shaft, Elastic Cushioning Rings/Pads At both Ends With Fixed Stop. Size=12, Cushioning Angle=10 Deg, Rotation Angle Adjustment Range=0 - 246 Deg, Swivel Angle=0 - 246 Deg, Cushioning=P1: Flexible Cushioning Rings/Plates With Stop At both Ends, Festo
Additional Variants
Product Name
Product Code
Working Pressure bar
Thread Type
Size
Thread Size
Rotation Angle
Buy Price
1.5 to 10
BSPP
63
1/4"
0 to 240°
£783.27
Available to Order
1.8 to 10
Metric
16
M5
0 to 246°
£294.30
Available to Order
1.5 to 10
BSPP
40
1/8"
0 to 240°
£595.57
Available to Order
1.5 to 10
BSPP
32
1/8"
0 to 246°
£461.52
Available to Order
1.5 to 10
Metric
25
M5
0 to 246°
£331.96
Available to Order
