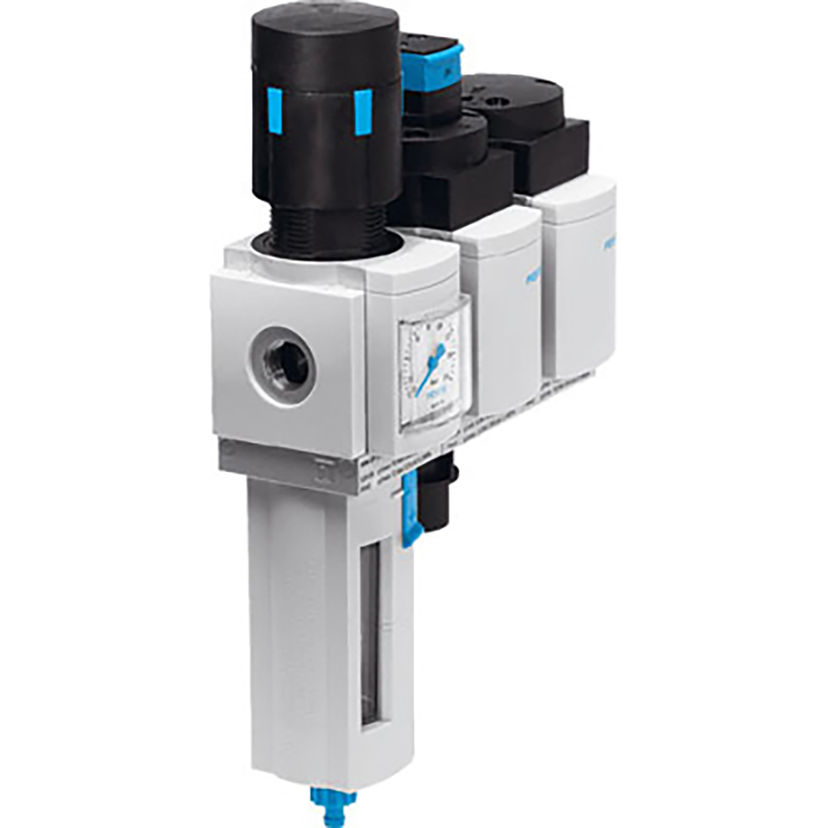

Festo 1/2" Filter Regulator Of Filter Regulator
Product Code: 530222Manufacturer Code: MSB6-1/2:J1D1A1-WP
...
Available to Order
Details
Mounting
Vertical
Drain Type
Manual
Bowl Type
Plastic Bowl Guard
Working Pressure bar
4 to 12
Size
6"
Thread Size
1/2"
Micron
40
Working Temperature
-10°C to +60°C
Bowl Material
Plastic
Material
Die-cast Aluminium
Thread Type
BSPP
Flow LPM
3100
Brand
Festo
Series
MS
Thread Gender
Female
Specification
Service Unit Combination MSB6-1/2:J1D1A1-Wp Consisting of Filter Regulator, Electrical On-Off Valve, Pneumatic Soft-Start Valve and Wall Mounting Plate. 12 bar Maximum Output Pressure, 40 µm Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Direction of Flow: From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 µm, Festo
Additional Variants
Product Name
Product Code
Thread Size
Size
Flow LPM
Working Temperature
Drain Type
Buy Price
1/4"
4
750
-10°C to +60°C
Manual
£314.31
Available to Order
1/2"
6
3100
+5°C to +60°C
Auto
£414.20
Available to Order
