Festo 1/4" Service Unit Filter-Regulator-Lubricator
Product Code: 531119Manufacturer Code: MSB4-1/4-FRC6:J2M1...
Available to Order
Details
Mounting
Vertical
Thread Size
1/4"
Bowl Type
Plastic Bowl Guard
Micron
40
Bowl Material
Plastic
Material
Die-cast Aluminium
Working Temperature
+5�C to +60�C
Thread Type
BSPP
Brand
Festo
Flow LPM
900
Series
MS
Drain Type
Fully Automatic
Working Pressure bar
0.5 to 12
Thread Gender
Female
Size
4"
Specification

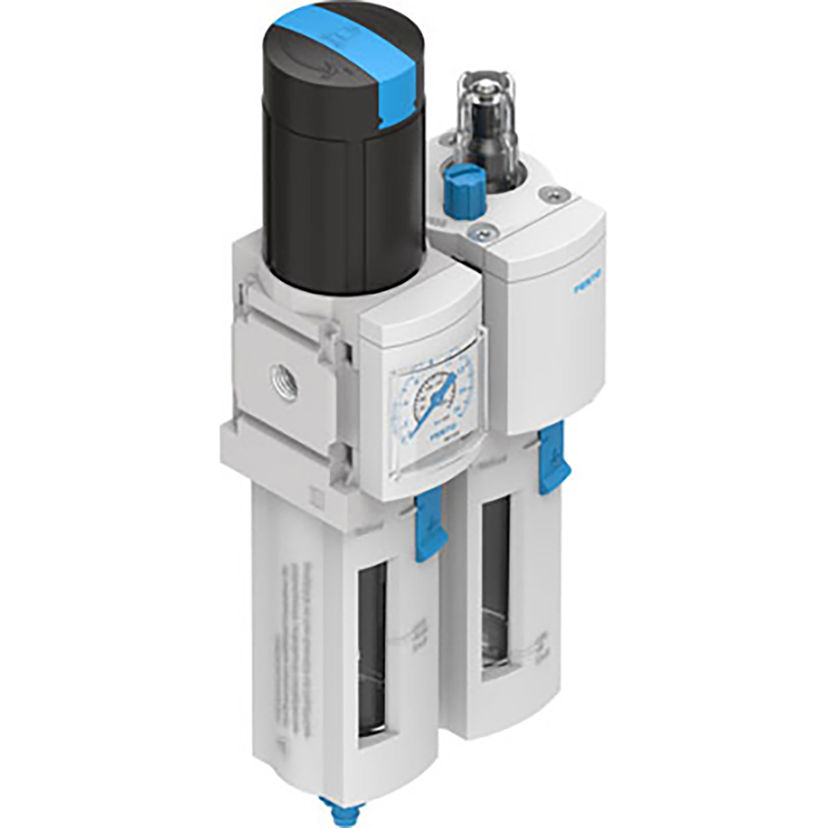

Service Unit Combination MSB4-1/4-Frc6:J2M1 Filter/Pressure Regulator/Lubricator Combination, Maximum Output Pressure 12 bar, 40 �m Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Left to Right. Size=4, Series=MS, Actuator Lock=Rotary Knob with Integrated Lock, Assembly Position=Vertical +/- 5�, Condensate Drain=Fully Automatic, Festo
Additional Variants
Product Name
Product Code
Size
Thread Size
Flow LPM
Bowl Type
Micron
List Price
6
1/2"
3700
Integrated as metal bowl guard
40
Available to Order
6
1/2"
3700
Plastic Bowl Guard
40
Available to Order
6
1/2"
3600
Integrated as metal bowl guard
5
Available to Order
