M326-61472

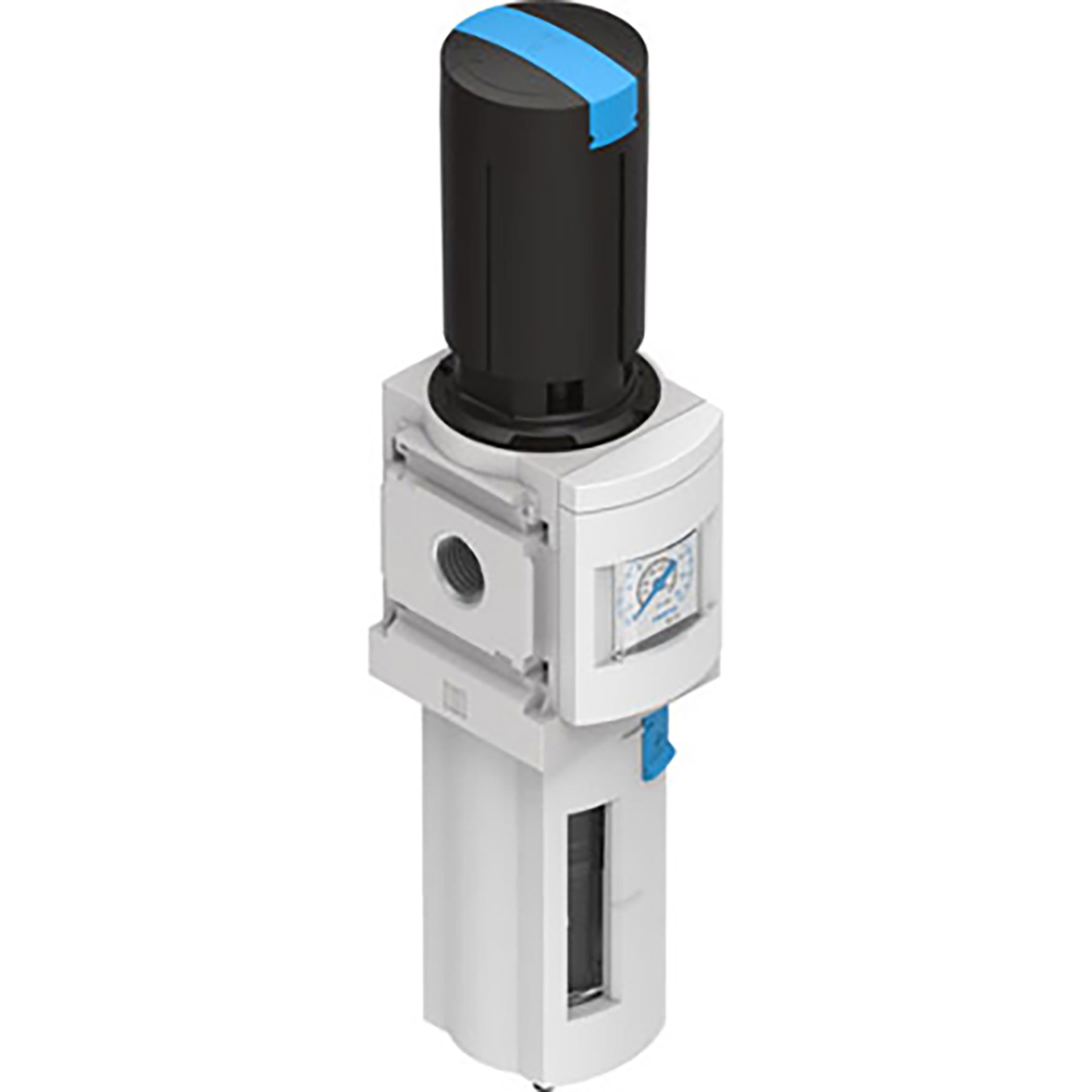

Festo 1/4" Filter Regulator Pressure 7 Bar

Product Code: 529151



...

Details

Mounting
Vertical
Thread Size
1/4"
Flow LPM
1700
Bowl Type
Plastic Bowl Guard
Working Temperature
+5°C to +60°C
Size
9
Micron
40
Bowl Material
Plastic
Capacity ml
19
Material
Die-cast Aluminium
Thread Type
BSPP
Brand
Festo
Seal Material
Nitrile
Series
MS
Thread Gender
Female
Drain Type
Auto
Working Pressure bar
2 to 12

Specification

Filter Regulator MS4-LFR-1/4-D6-ERV-As-Z Maximum Output Pressure 7 bar, 40 µm Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Right to Left. Size=4, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 µm, Festo
