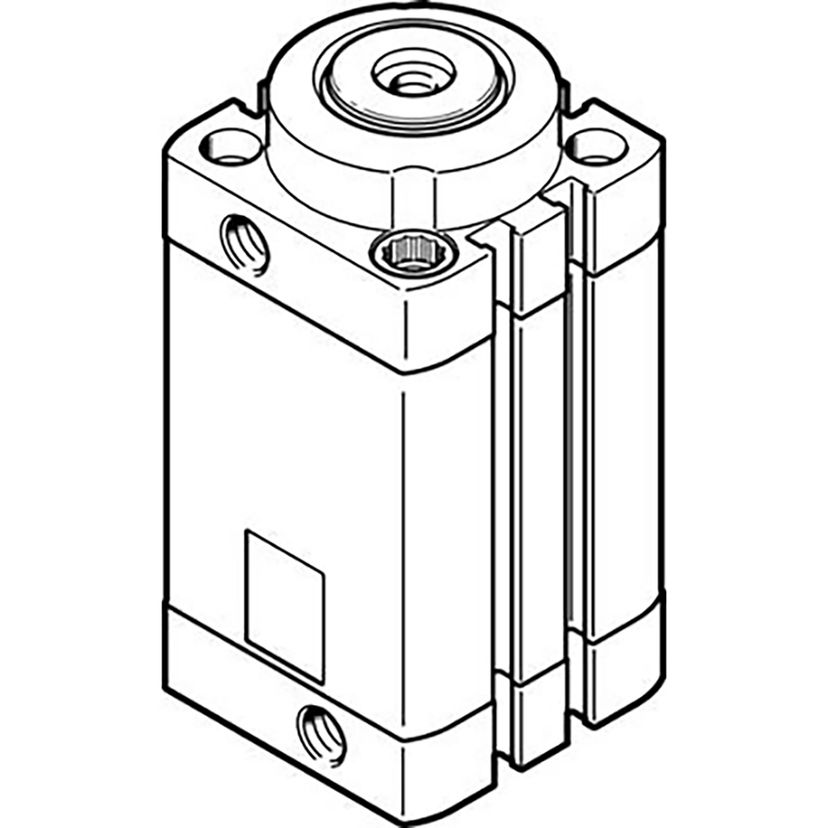

Festo M5 Metric Stopper CYL
Product Code: 576064Manufacturer Code: DFSP-16-10-DF-PA...
Available to Order
Details
Piston Rod Material
Stainless Steel
Barrel Material
Wrought Aluminium Alloy
Piston Rod Thread
M3
Piston Rod Thread Gender
Female
Bore Size mm
16
Seal Material
TPE-U
Working Temperature
-10°C to +80°C
Stroke Length mm
10
Thread Size
M5
Brand
Festo
Cushioning
Pad Cushioning
Thread Type
Metric
Magnetic
Y
Working Pressure bar
1 to 10
Specification
Stopper Cylinder Dfsp-16-10-Df-Pa Stroke=10 Mm, Piston Diameter=16 Mm, Piston Rod Thread=M3, Cushioning=P: Flexible Cushioning Rings/Plates at Both Ends, Assembly Position=Any, Festo
Additional Variants
Product Name
Product Code
Thread Size
Thread Type
Bore Size mm
Stroke Length mm
Piston Rod Thread
List Price
1/8"
BSPP
50
25
M8
Available to Order
1/8"
BSPP
50
20
M8
Available to Order
1/8"
BSPP
40
25
M8
Available to Order
1/8"
BSPP
32
15
M6
Available to Order
1/8"
BSPP
32
20
M6
Available to Order
1/8"
BSPP
40
30
M8
Available to Order
M5
Metric
20
15
M3
Available to Order
M5
Metric
20
20
M3
Available to Order
1/8"
BSPP
32
25
M6
Available to Order
1/8"
BSPP
50
30
M8
Available to Order
M5
Metric
16
15
M3
Available to Order
1/8"
BSPP
40
20
M8
Available to Order
M5
Metric
20
10
M3
Available to Order
