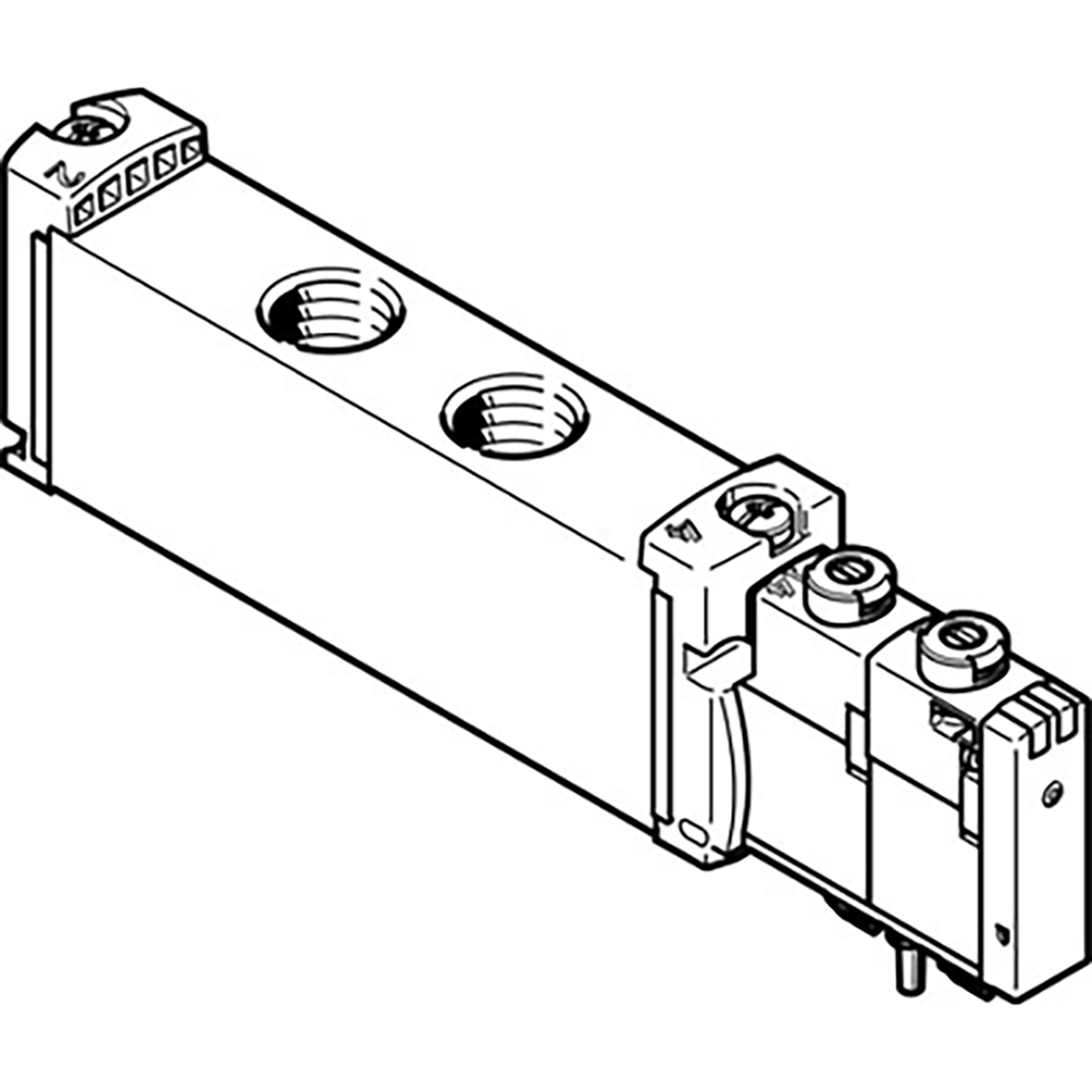

Festo VUVG-S10-T32H-MZT-M5-1T1L Solenoid Valve
Product Code: 573391Manufacturer Code: VUVG-S10-T32H-MZT-M5-1T1L
...
Available to Order
Details
Flow LPM
130
Material
Wrought Aluminium Alloy
Thread Size
M5
Actuation
Electrical, Mechanical Spring
Working Temperature
-5°C to +60°C
Working Pressure bar
-0.9 to 10
Brand
Festo
Seal Material
Nitrile
Voltage
24 V DC
Thread Type
Metric
Size mm
10
Function
2 x 3/2 Normally Open/Closed, Monostable
Specification
Solenoid Valve Vuvg-S10-T32H-Mzt-M5-1T1L Valve Function=2X3/2 Open/Closed, Monostable, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=130 L/Min, Operating Pressure=-0,9 - 10 bar, Festo
Additional Variants
Product Name
Product Code
Working Pressure bar
Thread Size
Flow LPM
Actuation
Size mm
Thread Type
Buy Price
1.5 to 10
M7
160
Electrical, Pneumatic Spring
10
Metric
£110.02
Available to Order
-0.9 to 10
1/4"
900
Electrical, Mechanical Spring
18
BSPP
£125.64
Available to Order
1.5 to 10
M5
150
Electrical, Pneumatic Spring
10
Metric
£105.76
Available to Order
1.5 to 10
1/4"
900
Electrical, Pneumatic Spring
18
BSPP
£118.54
Available to Order
1.5 to 10
1/8"
610
Electrical, Pneumatic Spring
14
BSPP
£114.28
Available to Order
-0.9 to 10
1/8"
520
Electrical, Mechanical Spring
14
BSPP
£121.36
Available to Order
-0.9 to 10
M7
140
Electrical, Mechanical Spring
10
Metric
£117.12
Available to Order
