M327-84159

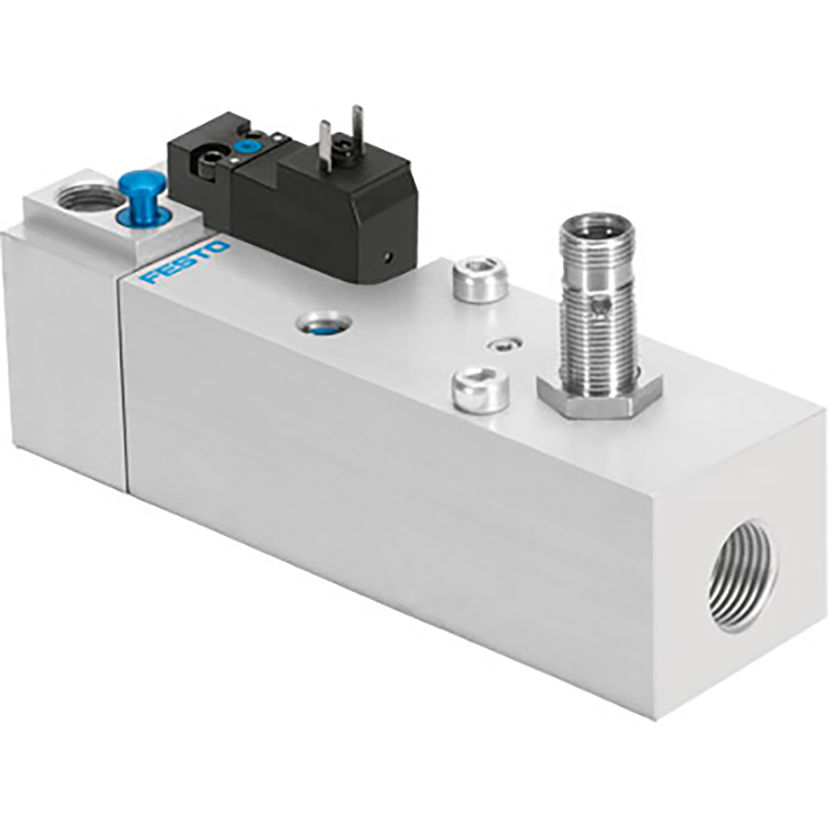

Festo VABF-S6-1-P5A4-G12-4-1-P Soft-Start Valve

Product Code: 557377



...

Details

Flow LPM
3300
Thread Size
1/2"
Material
Wrought Aluminium Alloy
Function
Normally Open
Actuation
Electrical, Mechanical Spring
Thread Type
BSPP
Brand
Festo
Seal Material
Nitrile
Voltage
24V DC
Thread Gender
Female
Working Temperature
-5° to +50°C
Working Pressure bar
2 to 12
Plug
M12 x 1

Specification

Soft-Start Valve Vabf-S6-1-P5A4-G12-4-1-P Max. Positive Test Pulse with Logic 0=2500 µs, Max. Negative Test Pulse with Logic 1=1400 µs, Vibration Resistance=Transport Application Test at Severity Level 2 In Accordance with Fn 942017-4 and En 60068-2-6, Shock Resistance=Shock Test with Severity Level 2 In Accordance with Fn 942017-5 and En 60068-2-27, Based On the Standard=Iso 5599-2, Festo
