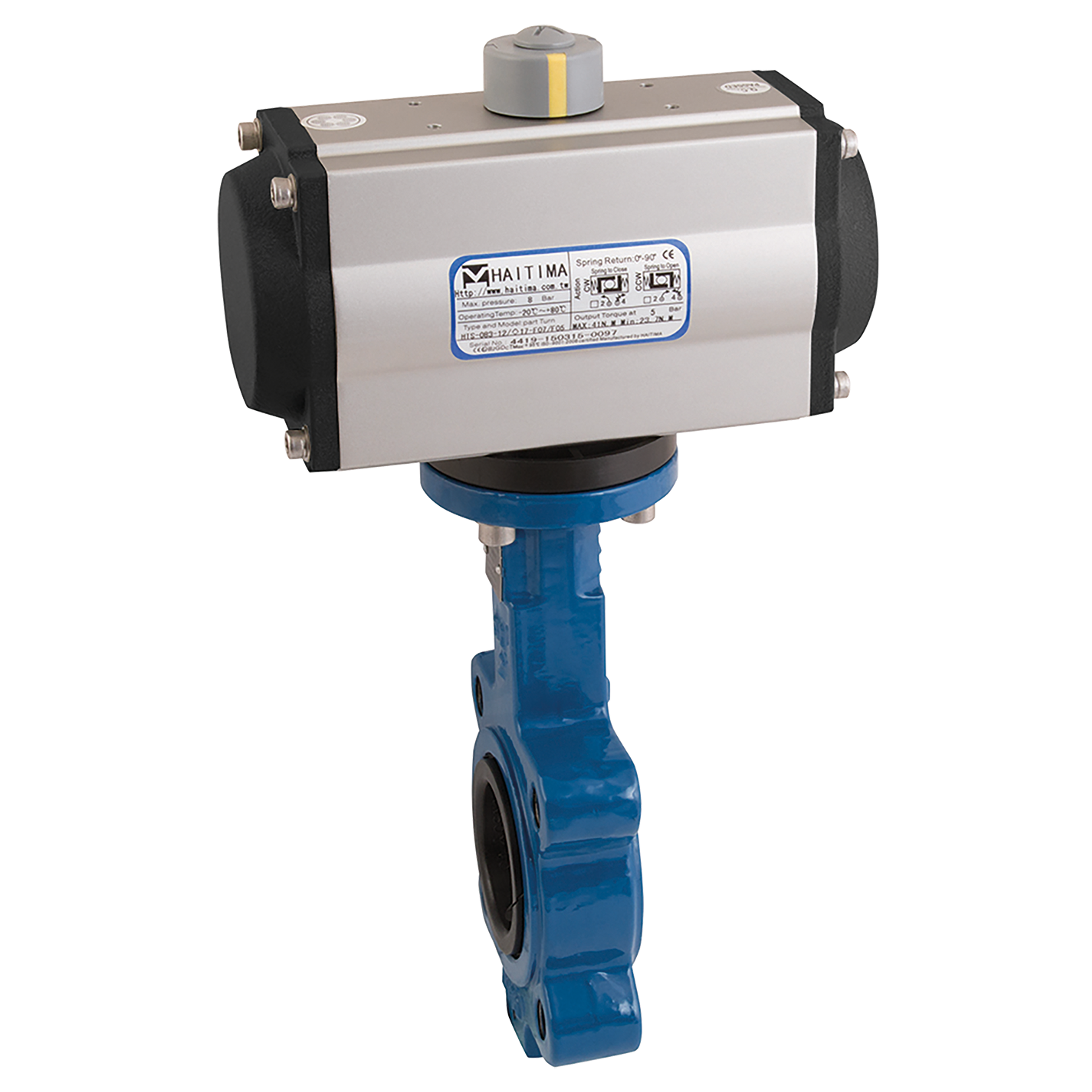

Haitima 10" PN16L+T BFLY FW Ss/Ss/FPM HAI DA Actuator
Product Code: HDA 2014LV 18
...
Details
Function
Double Acting
Design
Lugged and Tapped
Disc Material
Stainless Steel
Actuator Working Temperature
-20°C to +90°C
Valve Working Pressure bar
16
Valve Material
Stainless Steel
End Connection
Flanged PN16
Size
10"
Liner
FPM
Valve Working Temperature
-20°C to +200°C
Brand
Haitima
To Suit Flanges
PN16
Specification
10" PN16 Flange, Lugged and Tapped Butterfly Valve Fitted with an Actuator, Double Acting, Stainless Steel Valve Material, FPM Liner, Stainless Steel Disc Material, Actuator Working Temperature -20°C to +90°C, Valve Working Temperature -20°C to +200°C, Valve Working Pressure 16 bar, Haitima
Features: Lugged and tapped butterfly valve to suit PN16 flanges. Other size flanges are available on request . Available in ductile iron, carbon steel or stainless steel body. Stainless steel, ductile iron ENP and aluminium bronze disc options available. Liners available in EPDM, NBR, PTFE on silicone or FPM. WRAS approved valve option available (2014LA). Haitima aluminium pneumatic actuator. Sized based on 10 bar pilot air and wet non-abrasive duty at +80°C.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. CodeHDA 2014LV 14List-Discount-Buy£1,204.74Line£1,204.74Available to Order
